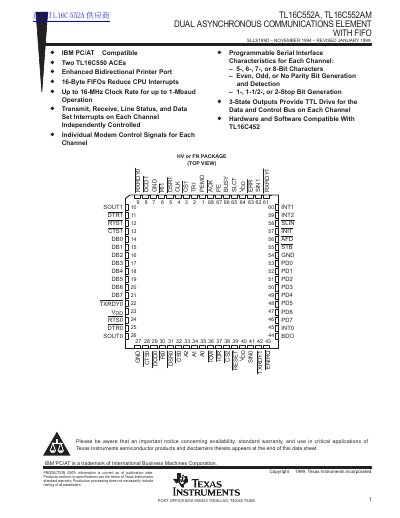

Texas Instruments TL16C552A/TL16C552AM Dual Asynchronous Communications Element Datasheet
The TL16C552A and TL16C552AM are enhanced dual-channel versions of the popular TL16C550B asynchronous communications element (ACE). These devices serve two serial input/output interfaces simultaneously in microcomputer or microprocessor-based systems, performing serial-to-parallel conversion on received data and parallel-to-serial conversion on transmitted data. The complete status of each channel can be read at any time during functional operation by the CPU, including transfer operation conditions and error states.
Read onlineTexas Instruments TL16C552 specifications
| Clock Rate | Up to 16-MHz |
|---|---|
| FIFO Size | 16-Byte |
| Package Types | 68-pin FN, 48-pin PN, 80-pin PN, 68-pin HV |
| Character Formats | 5-, 6-, 7-, or 8-Bit |
| Stop Bits | 1-, 1-1/2-, or 2-Stop Bit |
Source: Texas Instruments TL16C552A/TL16C552AM Dual Asynchronous Communications Element Datasheet
All Texas Instruments TL16C552 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the TL16C552A?
The TL16C552A is an enhanced dual-channel version of the popular TL16C550B asynchronous communications element (ACE).
From: Texas Instruments TL16C552A/TL16C552AM Dual Asynchronous Communications Element Datasheet
What are the available packages for the TL16C552A?
The TL16C552A is available in a 68-pin plastic-leaded chip-carrier (FN) package, a 48-pin TQFP (PN) package, and the 80-pin TQFP (PN) package.
From: Texas Instruments TL16C552A/TL16C552AM Dual Asynchronous Communications Element Datasheet
What is the TL16C552?
It is an enhanced dual channel version of the popular TL16C550 asynchronous communications element (ACE).
From: Texas Instruments TL16C552 Dual Asynchronous Communications Element with FIFO Datasheet
Is the TL16C552 compatible with IBM PC/AT?
Yes, it provides IBM PC/AT-compatible computers with a single device to serve the three system ports.
From: Texas Instruments TL16C552 Dual Asynchronous Communications Element with FIFO Datasheet
