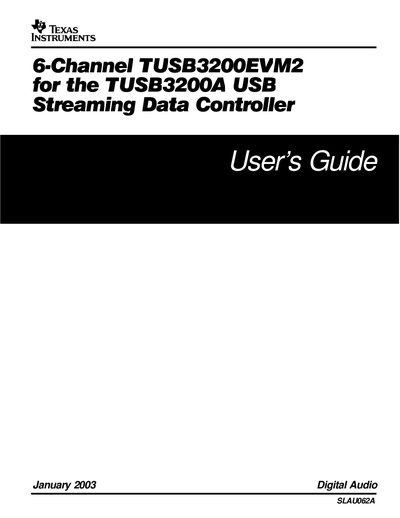

Texas Instruments TUSB3200EVM2 User Manual
This guide describes the setup and operation of the TUSB3200EVM2 evaluation platform, which includes the TUSB3200A streaming controller and a CS4228 codec. It covers hardware configuration, power options, jumper settings, and firmware loading procedures.
The document also contains schematic and layout information, jumper tables, analog stage description, EEPROM programming details, and recommendations for development tools needed to evaluate the board in a laboratory environment.
Texas Instruments TUSB3200 specifications
| USB data rate | 12 Mb/s (full speed) |
|---|---|
| Program memory ROM | 4K Bytes |
| Program memory RAM | 8K Bytes |
| Internal data memory RAM | 256 Bytes |
| Package | 52‑Pin TQFP |
| Core voltage | 3.3 V core, 5 V compatible I/O |
All Texas Instruments TUSB3200 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What USB speed does the TUSB3200A support?
It supports a full‑speed data rate of 12 Mb/s.
How many USB endpoints are available on the TUSB3200A?
The device provides up to seven IN endpoints and seven OUT endpoints in addition to the control endpoint.
What is the maximum USB data transfer speed of the TUSB3200?
The device supports up to 12 Mb/s full‑speed USB data transfers.
How many USB endpoints can the TUSB3200 handle?
It can handle up to seven IN and seven OUT endpoints plus a control endpoint.
How is the TUSB3200EVM2 powered in self‑powered mode?
Connect a 9‑V DC supply capable of 500 mA to the 9V and GND terminals of the board.
Which jumper setting selects bus‑powered mode?
Set jumper J8 to position 1‑2 to enable bus‑power for the TUSB3200EVM2.
