Texas Instruments 74AC574 Manuals

Key facts

Brand: Texas Instruments
Model: 74AC574
Industry: Electronics
Documents: 2
Languages: EN
Last added: 2012-06-05

Start here

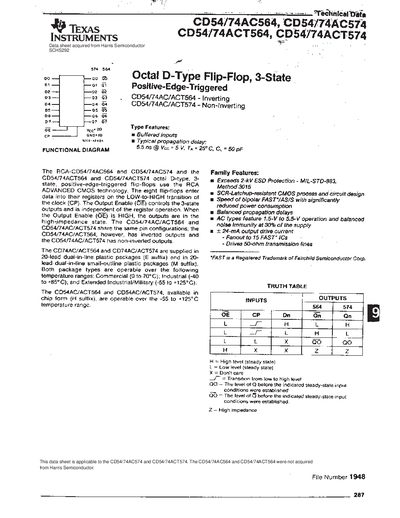

Texas Instruments CD54/74AC564/574 Octal D-Type Flip-Flop Data Sheet

Datasheet 9 pages · 248 KB · EN

The document details the CD54/74AC564 (inverting outputs) and CD54/74AC574 (non-inverting outputs), along with their ACT variants. These devices are positive-edge-triggered octal D-type, 3-state flip-flops utilizing RCA Advanced CMOS technology.

Read online

Texas Instruments 74AC574 specifications

Operating Temperature Range	-55 to +125°C
Typical Propagation Delay	6.5 ns @ Vcc = 5 V, Ta = 25°C
Output Drive Current	+/- 24 mA

Source: Texas Instruments CD54/74AC564/574 Octal D-Type Flip-Flop Data Sheet

All Texas Instruments 74AC574 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the difference between the AC564 and AC574?

The CD54/74AC/ACT564 has inverted outputs, while the CD54/74AC/ACTS74 (and 574) has non-inverted outputs.

From: Texas Instruments CD54/74AC564/574 Octal D-Type Flip-Flop Data Sheet

What is the maximum supply voltage for AC types?

The maximum supply voltage for AC types is 5.5 V.

From: Texas Instruments CD54/74AC564/574 Octal D-Type Flip-Flop Data Sheet

What supply voltage range does the SN74AC574 support?

It operates from 2 V to 6 V.

From: Texas Instruments SN74AC574 Octal D-Type Edge-Triggered Flip-Flop Datasheet

Which package types are available for the SN74AC574?

PDIP, SOIC, SSOP, TSSOP, LOCC, CDIP, CFP and other variants are listed.
