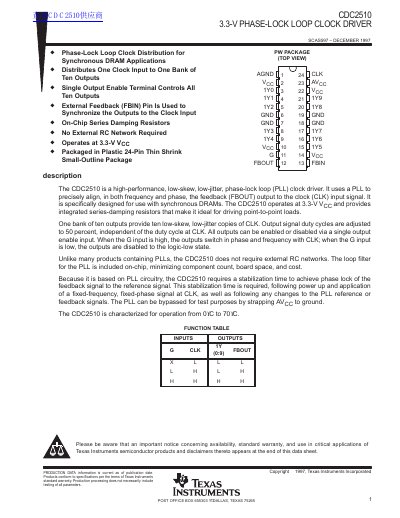

Texas Instruments CDC2510 Datasheet
Datasheet 9 pages · 117 KB · EN
The CDC2510 is a high-performance, low-skew, low-jitter phase-lock loop (PLL) clock driver specifically designed for use with synchronous DRAMs. It distributes one clock input to ten outputs and includes an on-chip series-damping resistor network, eliminating the need for external RC networks.
Read onlineTexas Instruments CDC2510 specifications
| Supply Voltage | 3.0 V to 3.6 V |
|---|---|
| Operating Temperature Range | 0°C to 70°C |
| Clock Frequency Range | 25 MHz to 125 MHz |
| Number of Outputs | 10 |
All Texas Instruments CDC2510 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the CDC2510 require external RC networks?
No, it does not require external RC networks because the loop filter is included on-chip.
What is the stabilization time required?
The stabilization time required to achieve phase lock is 7 ms.
What temperature range is the CDC2510 qualified for?
The CDC2510 is qualified for operation from 0 °C to 70 °C.
From: Texas Instruments CDC2510 Phase-Lock Loop Clock Driver Datasheet
