Start here

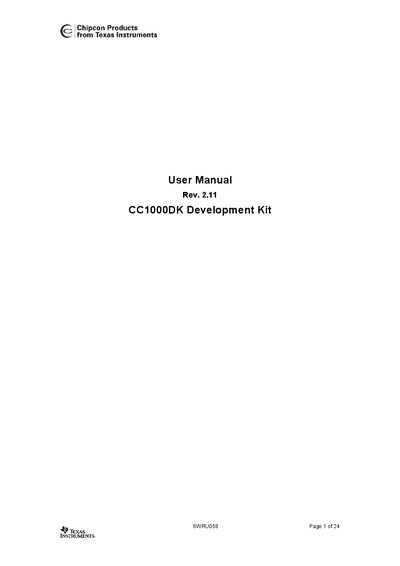

TEXAS INSTRUMENTS - SWRU058 Rev. 2.11 CC1000DK User Manual
The CC1000DK Development Kit provides a complete evaluation platform for the CC1000 single‑chip transceiver. It includes two evaluation boards, a PC parallel‑port interface, and accessories such as SMA adapters and antennas. The kit is intended to let users quickly evaluate RF performance and develop custom applications using SmartRF® Studio software.
The manual describes the hardware layout, voltage supply options, RF section, and signal interfaces. It also gives step‑by‑step instructions for setting up transmitter and receiver configurations, measuring current, and using the lock and RSSI signals. Safety and regulatory notes are included at the end.
Texas Instruments CC1000 specifications
| RF output power | up to 10 mW (10 dBm), programmable in 1 dB steps |
|---|---|
| Sensitivity | -109 dBm for 10% bit error rate |
| IF output | 10.7 MHz |
| RF filtering options | SAW or LC selectable |
| Supply voltage | selectable 3 V regulated or 4‑10 V unregulated |
| Maximum data rate | 9.6 kbit/s (Manchester) / 19.2 kbaud (NRZ) |
| Current measurement range | 0 to 26 mA |
| Crystal frequency | 14.7456 MHz |
Source: TEXAS INSTRUMENTS - SWRU058 Rev. 2.11 CC1000DK User Manual
All Texas Instruments CC1000 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What voltage supplies can be used with the CC1000DK?
The kit can be powered from a 3 V regulated supply or a 4‑10 V unregulated supply selected by a board switch.
From: TEXAS INSTRUMENTS - SWRU058 Rev. 2.11 CC1000DK User Manual
How is the lock status indicated on the evaluation board?
A LOCK signal is routed to the parallel‑port interface and can be monitored by the SmartRF® software; it is active high.
From: TEXAS INSTRUMENTS - SWRU058 Rev. 2.11 CC1000DK User Manual
