Key facts
- Brand
- Texas Instruments
- Model
- UC5603
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-04
Start here

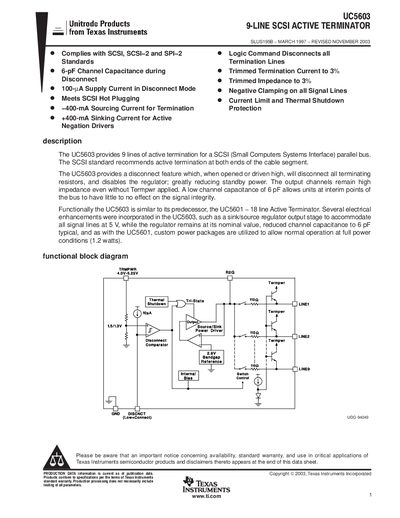

Texas Instruments UC5603 9-Line SCSI Active Terminator Datasheet
The UC5603 is a 9‑line SCSI active terminator that offers a disconnect feature to reduce standby power and maintain high‑impedance outputs when not powered. It includes internal trimming for impedance and output current to within 3% tolerance, and provides negative clamping, thermal shutdown, and current limiting for reliable operation.
The device is offered in several package types (SOIC‑16, PDIP‑16, PLCC‑28) and includes detailed electrical specifications such as 6 pF channel capacitance, ±400 mA source/sink capability, and a 170 °C thermal shutdown threshold. Ordering information, mechanical drawings, and packaging options are provided for design integration.
Texas Instruments UC5603 specifications
| Channel capacitance | 6 pF |
|---|---|
| Sourcing current | -400 mA |
| Sinking current | +400 mA |
| Thermal shutdown temperature | 170 °C |
| Supply current in disconnect mode | 100 µA |
Source: Texas Instruments UC5603 9-Line SCSI Active Terminator Datasheet
All Texas Instruments UC5603 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the channel capacitance of the UC5603?
The UC5603 has a channel capacitance of 6 pF.
From: Texas Instruments UC5603 9-Line SCSI Active Terminator Datasheet
What are the source and sink current capabilities?
It can source up to –400 mA and sink up to +400 mA.
From: Texas Instruments UC5603 9-Line SCSI Active Terminator Datasheet
How many termination lines does the UC5603 provide?
The UC5603 provides nine lines of active termination for a SCSI parallel bus.
What is the channel capacitance of the UC5603?
The device has a low channel capacitance of 6 pF (typical).
