Start here

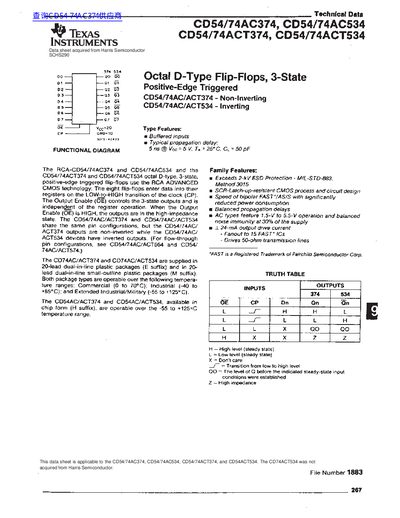

TEXAS INSTRUMENTS CD54/74AC374 CD54/74AC534 CD54/74ACT374 CD54/74ACT534 Technical Data
This datasheet provides technical specifications for the CD54/74AC374, CD54/74AC534, CD54/74ACT374, and CD54/74ACT534 octal D-type, 3-state, positive-edge triggered flip-flops. These devices utilize RCA Advanced CMOS technology and are available in dual-in-line plastic packages (E and M suffixes) or chip form (H suffix). The CD54/74AC/ACT374 features non-inverted outputs, while the CD54/74AC/ACT534 features inverted outputs.
Read onlineTexas Instruments 74AC374 specifications
| Technology | RCA ADVANCED CMOS technology |
|---|---|
| Package Types | 20-lead dual-in-line plastic (E) and small-outline plastic (M) |
| Operating Temperature Range | -55 to +125°C |
| Supply Voltage Range (AC Types) | 1.5 to 5.5 V |
| Supply Voltage Range (ACT Types) | 4.5 to 5.5 V |
| Output Drive Current | +/- 24 mA |
| Fanout | 15 FAST ICs |
| ESD Protection | 2-kV |
| Typical Propagation Delay | 5 ns |
Source: TEXAS INSTRUMENTS CD54/74AC374 CD54/74AC534 CD54/74ACT374 CD54/74ACT534 Technical Data
All Texas Instruments 74AC374 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the difference between the CD54/74AC374 and CD54/74AC534?
The CD54/74AC374 has non-inverted outputs, while the CD54/74AC534 has inverted outputs.
From: TEXAS INSTRUMENTS CD54/74AC374 CD54/74AC534 CD54/74ACT374 CD54/74ACT534 Technical Data
What are the recommended supply voltage ranges for AC and ACT types?
AC types operate from 1.5V to 5.5V, while ACT types operate from 4.5V to 5.5V.
From: TEXAS INSTRUMENTS CD54/74AC374 CD54/74AC534 CD54/74ACT374 CD54/74ACT534 Technical Data
What is the supply voltage range for the SN54AC374 / SN74AC374?
The devices operate with a supply voltage (VCC) from 2 V to 6 V.
From: Texas Instruments SN54AC374 / SN74AC374 Octal D-Type Edge-Triggered Flip-Flops Datasheet
What is the maximum clock frequency of these flip‑flops?
The maximum clock frequency is up to 100 MHz, depending on the specific package.
From: Texas Instruments SN54AC374 / SN74AC374 Octal D-Type Edge-Triggered Flip-Flops Datasheet
