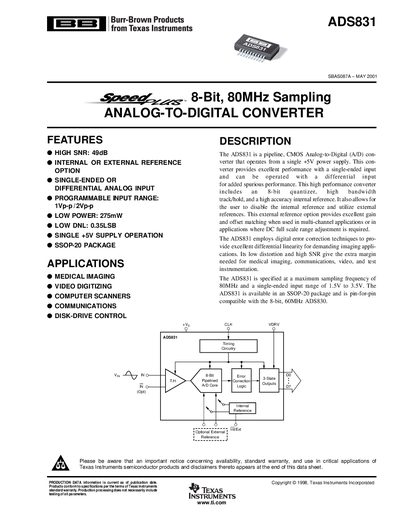

Texas Instruments ADS831 Datasheet
The ADS831 is an 8‑bit, pipeline CMOS analog‑to‑digital converter that operates from a single +5 V supply and offers up to 80 MS/s sampling rate. It supports both single‑ended and differential inputs, programmable input range, and an optional external reference for flexible system design.
The document includes absolute maximum ratings, detailed electrical characteristics, pin‑out diagrams, typical performance graphs, and application notes on input configurations such as AC‑coupled and DC‑coupled designs. Packaging options and ordering information for the SSOP‑20 package are also provided.
Texas Instruments ADS831 specifications
| Resolution | 8 bits |
|---|---|
| Supply Voltage | +5 V (operating +4.75 to +5.25 V) |
| Supply Current | 58 mA (typ) |
| Sample Rate | 80 MS/s |
| Package | SSOP‑20 (QSOP) |
