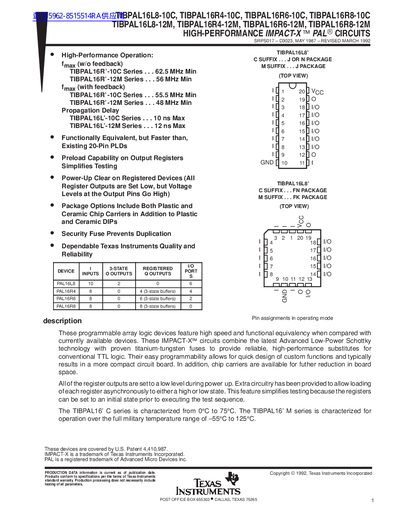

TEXAS INSTRUMENTS TIBPAL16R4-10C TIBPAL16R6-10C TIBPAL16R8-10C TIBPAL16R4-12M TIBPAL16R6-12M TIBPAL16R8-12M HIGH-PERFORMANCE IMPACT-X PAL CIRCUITS Data Sheet
This document describes the TIBPAL16R4-10C, TIBPAL16R6-10C, TIBPAL16R8-10C, TIBPAL16L8-10C, TIBPAL16R4-12M, TIBPAL16R6-12M, TIBPAL16R8-12M, and TIBPAL16L8-12M High-Performance IMPACT-X PAL circuits. These devices combine Advanced Low-Power Schottky technology with proven titanium-tungsten fuses to provide reliable, high-performance substitutes for conventional TTL logic.
Read onlineTexas Instruments R4‑10C specifications
| Maximum fmax (no feedback) | 71.4 MHz |
|---|---|
| Maximum fmax (internal feedback) | 58.8 MHz |
| Maximum fmax (external feedback) | 55.5 MHz |
| Propagation delay | 10 ns max |
| Operating temperature range | 0 °C to 75 °C |
| Package options | Plastic chip carriers, plastic DIPs, ceramic DIPs |
| Fuse technology | Low‑Power Schottky with titanium‑tungsten fuses |
Source: TEXAS INSTRUMENTS TIBPAL20L8-10C TIBPAL20R4-10C TIBPAL20R6-10C TIBPAL20R8-10C handbook
All Texas Instruments R4‑10C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Do these devices have a security feature?
Yes, a security fuse prevents duplication.
What is the minimum operating frequency for the TIBPAL16R4-10C series without feedback?
The minimum operating frequency for the TIBPAL16R4-10C series without feedback is 62.5 MHz.
What is the maximum propagation delay of the TIBPAL20 devices?
The propagation delay is specified as up to 10 ns.
From: TEXAS INSTRUMENTS TIBPAL20L8-10C TIBPAL20R4-10C TIBPAL20R6-10C TIBPAL20R8-10C handbook
What temperature range can the TIBPAL20 series operate in?
The devices are characterized for operation from 0 °C to 75 °C.
From: TEXAS INSTRUMENTS TIBPAL20L8-10C TIBPAL20R4-10C TIBPAL20R6-10C TIBPAL20R8-10C handbook
