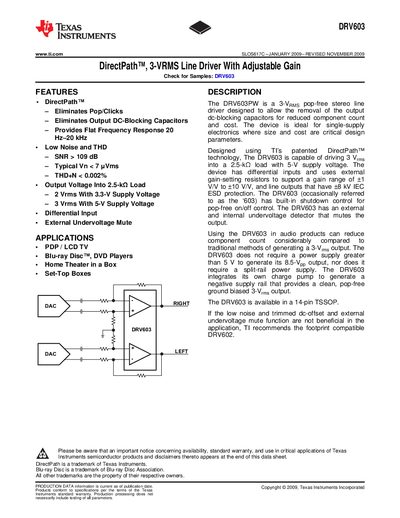

Texas Instruments DRV603 DirectPath 3‑VRMS Line Driver Adjustable Gain Handbook
The DRV603 is a 3‑VRMS pop‑free stereo line driver that eliminates the need for output DC‑blocking capacitors, reducing component count and cost. It is designed for single‑supply audio applications such as PDP/LCD‑TVs, Blu‑ray Disc players, set‑top boxes, and home‑theater systems.
Key features include DirectPath™ technology for pop‑free operation, low noise (SNR > 109 dB, THD+N < 0.002 %), adjustable gain from +1 V/V to +10 V/V via external resistors, differential inputs, and built‑in shutdown and undervoltage mute functions. The device operates from a 3.3 V or 5 V supply and provides up to 3 Vrms into a 2.5 kΩ load.
Texas Instruments DRV603 specifications
| Output voltage (3.3 V supply) | 2 Vrms into 2.5 kΩ load |
|---|---|
| Output voltage (5 V supply) | 3 Vrms into 2.5 kΩ load |
| Signal‑to‑noise ratio | > 109 dB |
| Total harmonic distortion + noise | < 0.002 % |
| Supply voltage range | 0.3 V to 5.5 V |
| Minimum load impedance | > 600 Ω |
| Typical input noise voltage | < 7 µV rms |
| Charge‑pump frequency | 225 kHz to 675 kHz |
| External undervoltage detection threshold | 1.25 V |
| Package | 14‑pin TSSOP |
Source: Texas Instruments DRV603 DirectPath 3‑VRMS Line Driver Adjustable Gain Handbook
All Texas Instruments DRV603 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What output voltage does the DRV603 provide with a 3.3 V supply?
It delivers 2 Vrms into a 2.5 kΩ load when powered from 3.3 V.
From: Texas Instruments DRV603 DirectPath 3‑VRMS Line Driver Adjustable Gain Handbook
Does the DRV603 require a split‑rail power supply?
No, the device integrates its own charge pump to generate a negative supply rail, allowing operation from a single supply.
From: Texas Instruments DRV603 DirectPath 3‑VRMS Line Driver Adjustable Gain Handbook
What should be read before setting up the DRV603EVM?
The DRV603EVM Users Guide should be read before setup and use of the evaluation module.
From: Texas Instruments DRV603EVM Evaluation Module Important Read This Letter First
What is the maximum power‑supply voltage for the DRV603EVM?
The maximum power‑supply voltage is 8.0 VDC.
From: Texas Instruments DRV603EVM Evaluation Module Important Read This Letter First
