Texas Instruments TAS5110 Manuals

Key facts

Brand: Texas Instruments
Model: TAS5110
Category: Other Electronics
Documents: 2
Languages: EN
Last added: 2012-08-01

Start here

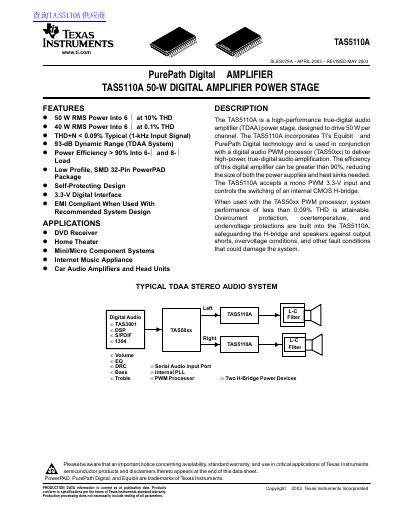

Texas Instruments TAS5110A 50-W Digital Amplifier Power Stage Datasheet

Datasheet 17 pages · 173 KB · EN

The TAS5110A is a high-performance true-digital audio amplifier (TDAA) power stage designed to drive 50 W per channel. It incorporates Texas Instruments' Equibit and PurePath Digital technology and is used in conjunction with a digital audio PWM processor to deliver high-power, true-digital audio amplification. The device accepts a mono PWM 3.3-V input and controls the switching of an internal CMOS H-bridge.

Read online

Texas Instruments TAS5110 specifications

Power Output	50 W RMS into 6 Ω at 10% THD
Power Output (Low Distortion)	40 W RMS into 6 Ω at 0.1% THD
Total Harmonic Distortion + Noise	< 0.09% typical
Dynamic Range	93 dB
Power Efficiency	> 90%
Digital Interface Voltage	3.3 V
Package Type	32-pin TSSOP PowerPAD

Source: Texas Instruments TAS5110A 50-W Digital Amplifier Power Stage Datasheet

All Texas Instruments TAS5110 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the power efficiency of the TAS5110A?

The power efficiency is greater than 90% into 6-Ω and 8-Ω loads.

From: Texas Instruments TAS5110A 50-W Digital Amplifier Power Stage Datasheet

What digital interface voltage does the TAS5110A use?

The device uses a 3.3-V digital interface.

From: Texas Instruments TAS5110A 50-W Digital Amplifier Power Stage Datasheet

What is the primary application for the TAS5110?

It is designed to drive 50 W per channel in conjunction with a digital audio PWM processor.

From: Texas Instruments TAS5110 True Digital Audio Amplifier Datasheet

What power output does the TAS5110 deliver into a 6-ohm load?

The amplifier delivers 50-W RMS power into 6 ohms at 10% THD and 40-W RMS power into 6 ohms at 0.1% THD.
