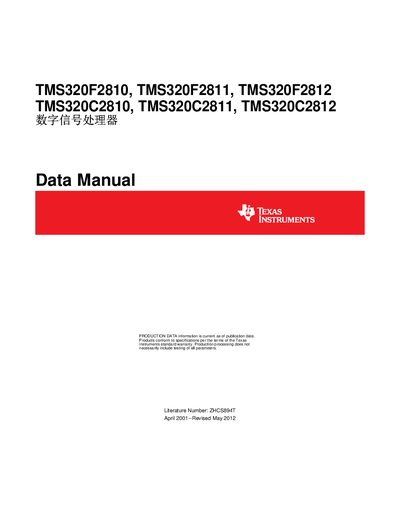

Texas Instruments TMS320F2810/F2811/F2812 C2810/C2811/C2812 DSP Datasheet
This data manual describes the TMS320F281x and TMS320C281x DSP families, covering device features, pin assignments, memory maps, peripheral blocks, and timing diagrams. It includes sections on getting started, electrical specifications, and recommended operating conditions.
Key information includes the 32‑bit CPU core, up to 150 MHz operation, flash and ROM capacities, ADC capabilities, GPIO count, and low‑power mode options, all presented with detailed register maps and timing requirements.
Texas Instruments TMS320F2810, TMS320F2811, TMS320F2812, TMS320C2810, TMS320C2811, TMS320C2812 specifications
| Maximum Operating Frequency | 150 MHz (6.67 ns period) |
|---|---|
| CPU Core | 32‑bit CPU (TMS320C28x) |
| ROM Memory | 128 K×16 |
| ADC | 12‑bit, 16 channels |
| GPIO Pins | 56 |
Source: Texas Instruments TMS320F2810/F2811/F2812 C2810/C2811/C2812 DSP Datasheet
All Texas Instruments TMS320F2810, TMS320F2811, TMS320F2812, TMS320C2810, TMS320C2811, TMS320C2812 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Texas Instruments TMS320F2810/F2811/F2812 C2810/C2811/C2812 DSP Datasheet 176 p
- TEXAS INSTRUMENTS TMS320F2810 TMS320F2811 TMS320F2812 TMS320C2810 TMS320C2811 TMS320C2812 Digital Signal Processors handbook 162 p
- TEXAS INSTRUMENTS - TMS320F2810 TMS320F2811 TMS320F2812 TMS320C2810 TMS320C2811 TMS320C2812 Digital Signal Process Data Manual 173 p
Questions answered in these manuals
What is the maximum operating frequency of the TMS320F281x devices?
The devices can operate up to 150 MHz, which corresponds to a 6.67 ns clock period.
From: Texas Instruments TMS320F2810/F2811/F2812 C2810/C2811/C2812 DSP Datasheet
How many GPIO pins does the device provide?
The DSP offers 56 general‑purpose I/O pins.
From: Texas Instruments TMS320F2810/F2811/F2812 C2810/C2811/C2812 DSP Datasheet
What is the literature number of this data manual?
The literature number is SPRS174M.
When was this manual last revised?
The manual was revised in October 2005.
When was this manual originally published and when was it revised?
It was originally published in April 2001 and revised in July 2007.
