Start here

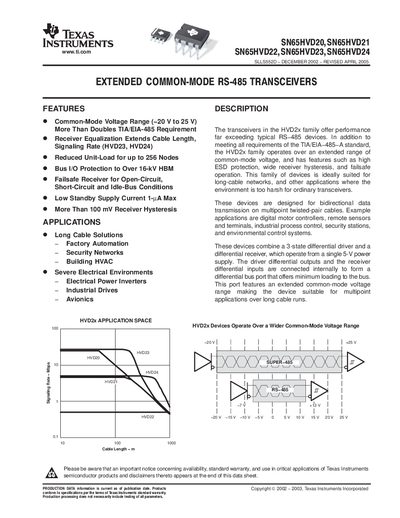

TEXAS INSTRUMENTS SN65HVD20 SN65HVD21 SN65HVD22 SN65HVD23 SN65HVD24 handbook
The SN65HVD2x family of transceivers from Texas Instruments offers performance exceeding typical RS-485 devices by operating over an extended range of common-mode voltage. These devices are designed for bidirectional data transmission on multipoint twisted-pair cables in severe electrical environments such as factory automation and industrial drives.
The family includes five specific models (HVD20 through HVD24) tailored for different cable lengths and signaling rates, ranging from 500 kbps to 25 Mbps. Key features include a failsafe receiver for open-circuit or short-circuit conditions, reduced unit-load for up to 256 nodes, and bus I/O protection to over 16-kV HBM.
Texas Instruments SN65HVD23 specifications
| ESD Protection (Human Body Model) | 16 kV |
|---|---|
| Max Signaling Rate (HVD20) | 25 Mbps |
| Max Nodes (HVD21) | 256 |
| Max Cable Length (HVD24) | 1000 m |
Source: TEXAS INSTRUMENTS SN65HVD20 SN65HVD21 SN65HVD22 SN65HVD23 SN65HVD24 handbook
All Texas Instruments SN65HVD23 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum signaling rate for the SN65HVD20?
The SN65HVD20 provides a high signaling rate of up to 25 Mbps.
From: TEXAS INSTRUMENTS SN65HVD20 SN65HVD21 SN65HVD22 SN65HVD23 SN65HVD24 handbook
How many nodes can the SN65HVD21 support?
The SN65HVD21 allows up to 256 connected nodes at moderate data rates.
From: TEXAS INSTRUMENTS SN65HVD20 SN65HVD21 SN65HVD22 SN65HVD23 SN65HVD24 handbook
What is the maximum data rate of the SN65HVD230Q/231Q/232Q transceivers?
They support signaling rates up to 1 Mbps.
From: TEXAS INSTRUMENTS SN65HVD230Q-Q1/SN65HVD231Q-Q1/SN65HVD232Q-Q1 DATA SHEET
What is the standby current of the SN65HVD230?
The SN65HVD230 has a typical standby current of 370 µA.
From: TEXAS INSTRUMENTS SN65HVD230 SN65HVD231 SN65HVD232 3.3-V CAN TRANSCEIVERS handbook
What is the sleep current of the SN65HVD231?
The SN65HVD231 draws a typical sleep current of 40 nA.
From: TEXAS INSTRUMENTS SN65HVD230 SN65HVD231 SN65HVD232 3.3-V CAN TRANSCEIVERS handbook
