Start here

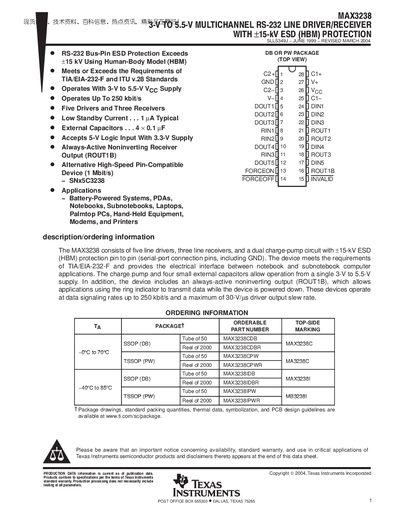

Texas Instruments MAX3238 Datasheet
The MAX3238 integrates five line drivers and three line receivers with a dual charge‑pump circuit, allowing operation from a single 3‑V to 5.5‑V supply. It meets TIA/EIA‑232‑F standards, supports data rates up to 250 kbit/s, and includes an always‑active non‑inverting output (ROUT1B) for ring‑indicator applications.
The device offers auto‑powerdown plus, which shuts off the charge pump and drivers after about 30 s of inactivity, reducing standby current to approximately 1 µA. It is available in DB (SSOP) and PW (TSSOP) packages, with ordering numbers such as MAX3238CDB and MAX3238CPW. The datasheet also contains mechanical dimensions, absolute‑maximum ratings, and TI’s standard warranty notice.
Texas Instruments MAX3238 specifications
| Maximum data rate | 250 kbit/s |
|---|---|
| Number of line drivers | 5 |
| Number of line receivers | 3 |
| ESD protection | +15 kV (HBM) |
| Typical standby current | ≈1 µA |
All Texas Instruments MAX3238 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data signaling rate of the MAX3238?
It can handle data rates up to 250 kbit/s.
How many drivers and receivers are integrated in the MAX3238?
The device contains five line drivers and three line receivers.
What is the operating supply voltage range for the MAX3238E?
The device operates from 3 V to 5.5 V.
From: Texas Instruments MAX3238E Multichannel RS-232 Line Driver/Receiver Datasheet
What ESD protection rating does the MAX3238E provide?
It provides +15 kV Human‑Body Model (HBM) ESD protection.
From: Texas Instruments MAX3238E Multichannel RS-232 Line Driver/Receiver Datasheet
