Start here

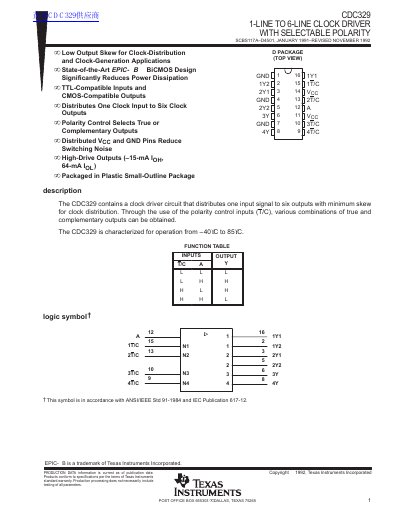

Texas Instruments CDC329 1-Line to 6-Line Clock Driver Datasheet
The CDC329 is a 1-line to 6-line clock driver designed for clock distribution and clock-generation applications. It features selectable polarity control to obtain various combinations of true and complementary outputs. The device is characterized for operation from -40°C to 85°C and is packaged in a plastic small-outline package.
Read onlineTexas Instruments CDC329 specifications
| Operating Temperature Range | -40°C to 85°C |
|---|---|
| Supply Voltage Range | 4.75 V to 5.25 V |
| High-Level Output Current | 15 mA |
| Low-Level Output Current | 64 mA |
Source: Texas Instruments CDC329 1-Line to 6-Line Clock Driver Datasheet
All Texas Instruments CDC329 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the CDC329?
It distributes one input signal to six outputs with minimum skew for clock distribution.
From: Texas Instruments CDC329 1-Line to 6-Line Clock Driver Datasheet
How does the polarity control work?
The polarity control inputs (T/C) allow various combinations of true and complementary outputs to be obtained.
From: Texas Instruments CDC329 1-Line to 6-Line Clock Driver Datasheet
