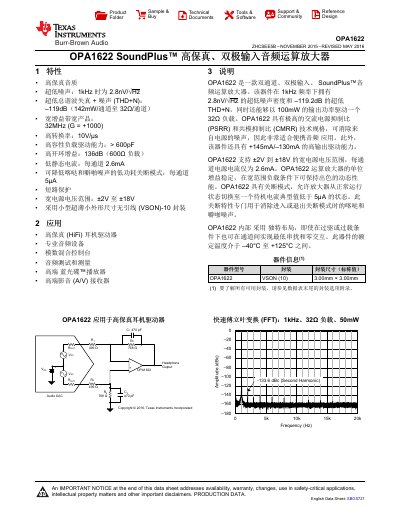

Texas Instruments OPA1622 SoundPlus Audio Operational Amplifier Datasheet
The OPA1622 is a dual-channel, bipolar-input, SoundPlus™ audio operational amplifier designed for high-fidelity applications. It features ultra-low input voltage noise of 2.8 nV/√Hz at 1 kHz and an ultra-low total harmonic distortion plus noise (THD+N) of –119 dB when driving 32 Ω loads with 142 mW per channel.
The device supports a wide supply voltage range from ±2 V to ±18 V and offers high output drive capability, capable of delivering +145 mA/–130 mA. It includes a shutdown mode that reduces the quiescent current to less than 5 μA per channel to eliminate click-and-pop noise during power transitions. The OPA1622 is available in a small 10-pin VSON package. This manual is written in Chinese.
Texas Instruments OPA1622 specifications
| Supply voltage range | ±2 V to ±18 V |
|---|---|
| Input voltage noise density (1 kHz) | 2.8 nV/√Hz |
| Total harmonic distortion + noise (THD+N) | –119 dB |
| Output short‑circuit current | +145 /–130 mA |
Source: Texas Instruments OPA1622 Audio Operational Amplifier Data Sheet
All Texas Instruments OPA1622 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output short-circuit current capability?
The device can provide a continuous short-circuit current of +145 mA/–130 mA.
From: Texas Instruments OPA1622 SoundPlus Audio Operational Amplifier Datasheet
What is the maximum total harmonic distortion plus noise (THD+N) for the OPA1622?
The device achieves a maximum THD+N of –116 dB when driving a 32Ω load with 10mW of output power.
From: Texas Instruments OPA1622 SoundPlus Audio Operational Amplifier Datasheet
What is the supply voltage range of the OPA1622?
The OPA1622 can be powered from a single supply of 4 V to 36 V or from dual supplies of ±2 V to ±18 V.
From: Texas Instruments OPA1622 Audio Operational Amplifier Data Sheet
What is the input voltage noise density at 1 kHz?
The input voltage noise density is 2.8 nV/√Hz at 1 kHz.
From: Texas Instruments OPA1622 Audio Operational Amplifier Data Sheet
