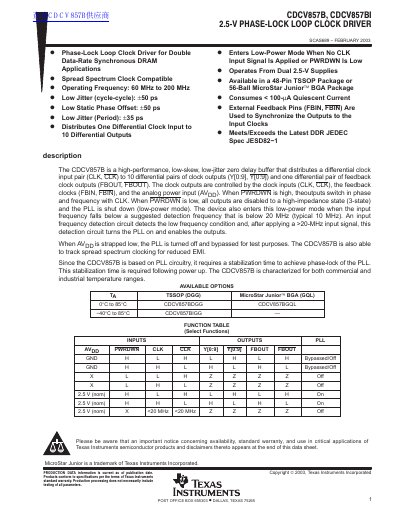

TEXAS INSTRUMENTS CDCV857B CDCV857BI handbook
The CDCV857B is a high-performance, low-skew, low-jitter zero delay buffer designed to distribute a differential clock input pair to 10 differential pairs of clock outputs and one differential pair of feedback clock outputs. It operates from dual 2.5-V supplies and is compatible with spread spectrum clocking to reduce EMI. The device enters a low-power mode when the input frequency falls below a suggested detection frequency or when the PWRDWN pin is low.
Read onlineTexas Instruments CDCV857 specifications
| Operating Frequency | 60 MHz to 200 MHz |
|---|---|
| Supply Voltage | 2.5 V (nominal) |
| Quiescent Current | < 100 µA |
| Low Jitter (cycle-cycle) | ±50 ps |
| Low Static Phase Offset | ±50 ps |
| Output Distribution | 10 Differential Outputs |
All Texas Instruments CDCV857 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the device support spread spectrum clocking?
Yes, the CDCV857B is able to track spread spectrum clocking for reduced EMI.
What happens when the PWRDWN pin is low?
When PWRDWN is low, all outputs are disabled to a high-impedance state and the PLL is shut down to a low-power mode.
What is the operating frequency range of the CDCV857A?
The device operates from 60 to 180 MHz.
From: Texas Instruments CDCV857A Phase Lock Loop Clock Driver Datasheet
Does the CDCV857A support spread spectrum clocking?
Yes, the device is able to track spread spectrum clocking for reduced EMI.
From: Texas Instruments CDCV857A Phase Lock Loop Clock Driver Datasheet
What is the stabilization time for the PLL mode?
The stabilization time required following power up in PLL mode is 10 µs.
From: Texas Instruments CDCV857 Phase Lock Loop Clock Driver Datasheet
Can the CDCV857 track spread spectrum clocking?
Yes, the device is able to track spread spectrum clocking for reduced EMI.
From: Texas Instruments CDCV857 Phase Lock Loop Clock Driver Datasheet
