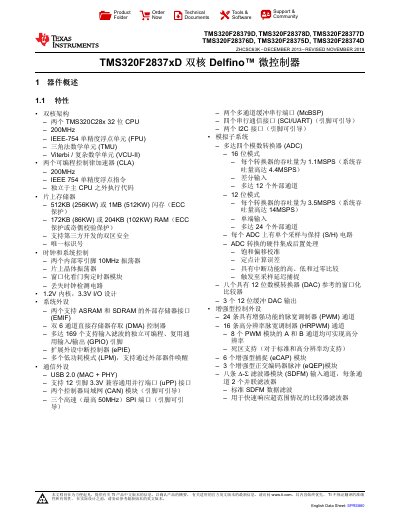

Texas Instruments TMS320F2837xD Delfino™ Microcontroller Datasheet
The TMS320F2837xD Delfino™ microcontroller family from Texas Instruments features a dual‑core C28x 32‑bit CPU architecture, each core running at 200 MHz, with integrated floating‑point units, VCU‑II, TMU, and CLA accelerators. It provides up to 1 MB of on‑chip flash, 204 KB of RAM, extensive analog and control peripherals, and a rich set of communication interfaces.
The device is offered in multiple package options (337‑ball nFBGA, 176‑pin HLQFP, 100‑pin HTQFP) and supports a wide temperature range (‑40 °C to 125 °C). Detailed specifications cover absolute maximum ratings, electrical characteristics, thermal data, and pin‑out information for designers. This manual is written in Chinese.
Texas Instruments TMS320F2837xD specifications
| CPU frequency | 200 MHz |
|---|---|
| Flash memory | 1 MB (512 KB per CPU) |
| RAM | 204 KB (102 KB per CPU) |
| GPIO pins | Up to 169 programmable I/O pins |
Source: Texas Instruments TMS320F2837xD Delfino™ Microcontroller Datasheet
All Texas Instruments TMS320F2837xD documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What CPU architecture does the TMS320F2837xD use?
It uses a dual‑core C28x 32‑bit CPU architecture, each core running at 200 MHz.
From: Texas Instruments TMS320F2837xD Delfino™ Microcontroller Datasheet
How many GPIO pins are available on the device?
The microcontroller provides up to 169 independent programmable I/O pins.
From: Texas Instruments TMS320F2837xD Delfino™ Microcontroller Datasheet
What is the core frequency of the TMS320F2837xD?
Each core runs at 200 MHz.
From: Texas Instruments TMS320F2837xD Microcontroller Technical Data Sheet
How much on‑chip flash memory does the device provide?
The microcontroller includes up to 1 MB (512 KW) of flash memory.
From: Texas Instruments TMS320F2837xD Microcontroller Technical Data Sheet
