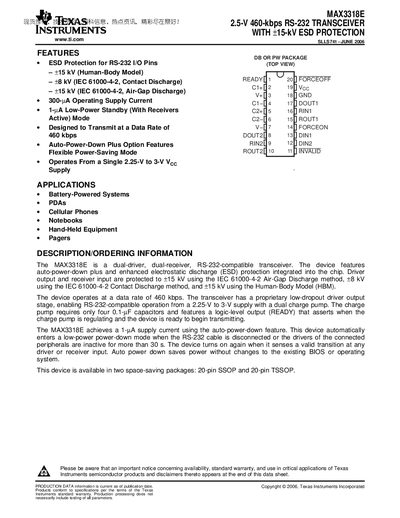

Texas Instruments MAX3318E RS-232 Transceiver Datasheet
The MAX3318E is a dual‑driver, dual‑receiver RS‑232‑compatible transceiver designed for low‑power, battery‑powered applications. It operates from a single 2.25 V to 3 V supply and includes an auto‑power‑down plus feature that reduces supply current to 1 µA when the serial port is idle.
The device offers robust electrostatic discharge protection of up to +15 kV (human‑body model) and includes a charge‑pump architecture that requires only four 0.1 µF capacitors. It is available in 20‑pin SSOP and 20‑pin TSSOP packages.
Texas Instruments MAX3318 specifications
| Supply voltage (VCC) | 2.25 V to 3 V |
|---|---|
| Maximum data rate | 460 kbps |
| Package options | 20‑pin SSOP, 20‑pin TSSOP |
Source: Texas Instruments MAX3318 RS-232 Transceiver Datasheet
All Texas Instruments MAX3318 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the MAX3318?
The MAX3318 supports a data rate of up to 460 kbps.
From: Texas Instruments MAX3318 RS-232 Transceiver Datasheet
What supply voltage range does the MAX3318 require?
It operates from a single supply voltage of 2.25 V to 3 V.
From: Texas Instruments MAX3318 RS-232 Transceiver Datasheet
