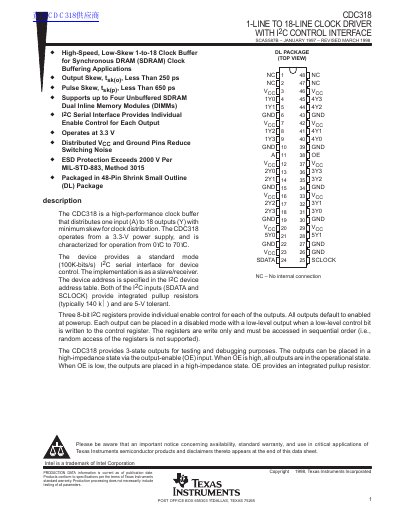

Texas Instruments CDC318 1-Line to 18-Line Clock Driver Datasheet
The CDC318 is a high-performance clock buffer that distributes one input to 18 outputs with minimum skew, designed for synchronous DRAM (SDRAM) clock buffering applications. It operates from a 3.3-V power supply and is characterized for operation from 0°C to 70°C. The device features a standard mode I2C serial interface for device control, allowing individual enable control for each output via three 8-bit registers.
Read onlineTexas Instruments CDC318 specifications
| Supply Voltage | 3.3 V |
|---|---|
| Operating Temperature | 0°C to 70°C |
| Output Skew | Less than 250 ps |
| Pulse Skew | Less than 650 ps |
| ESD Protection | Exceeds 2000 V |
Source: Texas Instruments CDC318 1-Line to 18-Line Clock Driver Datasheet
All Texas Instruments CDC318 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating temperature for the CDC318?
The device is characterized for operation from 0°C to 70°C.
From: Texas Instruments CDC318 1-Line to 18-Line Clock Driver Datasheet
How many clock outputs does the CDC318 provide?
The CDC318 distributes one input to 18 outputs.
From: Texas Instruments CDC318 1-Line to 18-Line Clock Driver Datasheet
What is the maximum operating temperature?
The device is characterized for operation from 0°C to 70°C.
From: Texas Instruments CDC318A 1-Line to 18-Line Clock Driver Datasheet
What is the maximum output skew for this clock driver?
The output skew is less than 250 ps.
From: Texas Instruments CDC318A 1-Line to 18-Line Clock Driver Datasheet
