Key facts
- Brand
- Texas Instruments
- Model
- TSB82AA2
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-05-07
Start here

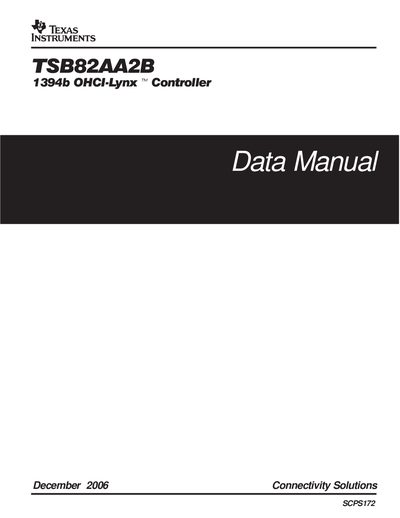

Texas Instruments TSB82AA2B OHCI-Lynx Controller Data Manual
This data manual introduces the TSB82AA2B OHCI-Lynx controller, covering its features, related documents, and ordering information. It includes a detailed programming model with PCI configuration registers and a comprehensive list of terminal descriptions.
The document contains extensive register maps for OHCI, power‑management, GPIO, and serial EEPROM interfaces, as well as electrical characteristics, recommended operating conditions, and mechanical drawings for the device packages.
Texas Instruments TSB82AA2 specifications
| Supply Voltage | Single 3.3 V (1.8 V internal core regulator) |
|---|---|
| PCI Signaling | 3.3 V and 5 V |
| Serial Bus Data Rates | 100 M, 200 M, 400 M, 800 M bits/s |
| PCI Clock Options | 33 MHz/64‑bit or 33 MHz/32‑bit |
| Power Management States | DO, D1, D2, D3 |
| Package Type | 144‑Terminal LQFP (PGE) |
| Package Quantity per Lot | 60 |
| RoHS / Green Classification | Green (RoHS & no Sb/Br) |
Source: Texas Instruments TSB82AA2B 1394b OHCI-Lynx Controller Datasheet
All Texas Instruments TSB82AA2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the TSB82AA2B require?
It uses a single 3.3 V supply with an internal 1.8 V core regulator.
From: Texas Instruments TSB82AA2B 1394b OHCI-Lynx Controller Datasheet
Which serial bus data rates are supported by the controller?
The controller supports 100 M, 200 M, 400 M, and 800 M bits/s serial bus data rates.
From: Texas Instruments TSB82AA2B 1394b OHCI-Lynx Controller Datasheet
What PCI bus speeds does the TSB82AA2 support?
It supports selectable 33 MHz/64‑bit and 33 MHz/32‑bit PCI interfaces.
Which serial bus data rates are compatible with the TSB82AA2?
The device works with 100 M, 200 M, 400 M, and 800 M bits/s serial bus rates.
