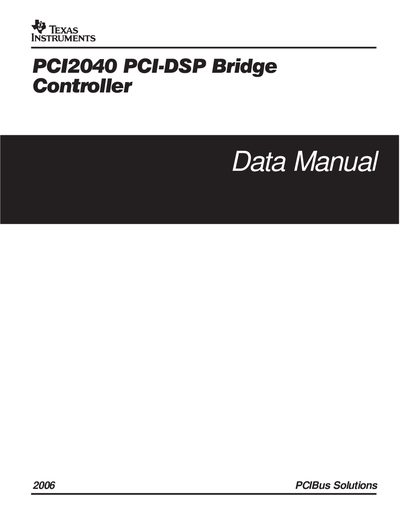

Texas Instruments PCI2040 PCI-DSP Bridge Controller Data Manual
The PCI2040 PCI‑DSP Bridge Controller data manual provides a comprehensive reference for engineers and developers. It covers the device’s functional description, register map, programming model, electrical characteristics, and mechanical information.
The document includes detailed tables of PCI interface registers, HPI control registers, and examples of host‑port transactions, as well as packaging dimensions for the GGU BGA and PGE variants.
All Texas Instruments PCI2040 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the literature number for the PCI2040 data manual?
The literature number is SCPS048A.
From: Texas Instruments PCI2040 PCI-DSP Bridge Controller Data Manual
What packaging options are available for the PCI2040?
It is packaged in either a 144‑ball GGU BGA or a 144‑pin PGE package.
