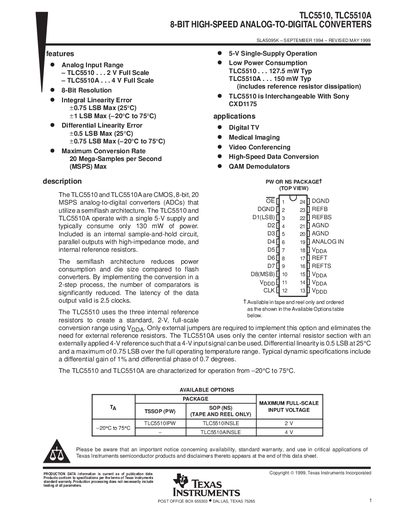

Texas Instruments TLC5510/TLC5510A Datasheet
The TLC5510 and TLC5510A are CMOS 8‑bit analog‑to‑digital converters that operate from a single 5‑V supply and achieve up to 20 MSPS conversion speed. They feature internal reference resistors for 2‑V (TLC5510) or 4‑V (TLC5510A) full‑scale input ranges and provide parallel digital outputs with a high‑impedance mode.
Key specifications include low power consumption (127.5 mW typ for TLC5510, 150 mW typ for TLC5510A), differential linearity error of 0.5 LSB at 25 °C (max 0.75 LSB over temperature), and operation over –20 °C to 75 °C. Detailed electrical characteristics, pin functions, and recommended layout practices are provided for designers.
Texas Instruments TLC551 specifications
| Resolution | 8‑bit |
|---|---|
| Maximum Conversion Rate | 20 MSPS |
| Supply Voltage | 5 V single‑supply |
| Typical Power Consumption (TLC5510) | 127.5 mW |
| Typical Power Consumption (TLC5510A) | 150 mW |
| Differential Linearity Error | 0.5 LSB (25 °C), 0.75 LSB (full range) |
| Operating Temperature Range | -20 °C to 75 °C |
All Texas Instruments TLC551 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the TLC5510 and TLC5510A?
Both devices provide an 8‑bit resolution.
What is the maximum conversion rate of these ADCs?
They can convert up to 20 MSPS.
What is the supply voltage range for the TLC551?
The device operates from 1 V up to 15 V supply voltage.
