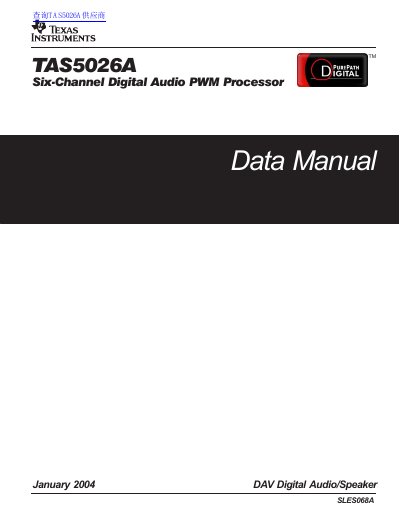

Texas Instruments TAS5026A Six-Channel Digital Audio PWM Processor Data Manual
The document is a data manual for the Texas Instruments TAS5026A, a six-channel digital audio pulse-width modulator (PWM) processor. It details the device's architecture, including clock and serial data interfaces, reset and power-down functions, signal processing features like volume control and de-emphasis filtering, and PWM modulation capabilities.
The manual covers system initialization procedures, switching between master and slave modes, and provides comprehensive register definitions for I2C serial control. It includes detailed electrical characteristics over recommended operating conditions, timing diagrams for various interfaces (Serial Audio Port, Serial Control Port), and mechanical data.
Texas Instruments TAS5026 specifications
| Channels | Six-Channel |
|---|---|
| Input Data Width | 16-, 20-, or 24-Bit |
| Sampling Rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz |
| Power Supply | 3.3-V |
| Package | 64-Pin TQFP |
| Signal-to-Noise Ratio | 96-dB SNR |
Source: Texas Instruments TAS5026 Six-Channel Digital Audio PWM Processor Data Manual
All Texas Instruments TAS5026 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the Texas Instruments TAS5026A?
It is a six-channel digital audio PWM processor.
From: Texas Instruments TAS5026A Six-Channel Digital Audio PWM Processor Data Manual
What is the data sample rate for the specifications?
The specifications are measured at a data sample rate of 48 kHz.
From: Texas Instruments TAS5026A Six-Channel Digital Audio PWM Processor Data Manual
What is the TAS5026 designed to drive?
The TAS5026 is designed to drive up to six digital power devices to provide six channels of digital audio amplification.
From: Texas Instruments TAS5026 Six-Channel Digital Audio PWM Processor Data Manual
What are the supported sampling rates?
The device supports AES standard sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz.
From: Texas Instruments TAS5026 Six-Channel Digital Audio PWM Processor Data Manual
