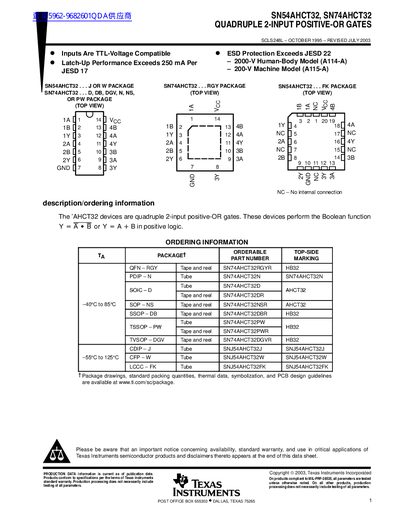

Texas Instruments SN54AHCT32/SN74AHCT32 Quadruple 2-Input Positive-OR Gates Datasheet
The document provides technical specifications for the 'AHCT32 devices, which are quadruple 2-input positive-OR gates performing the Boolean function Y=A+B in positive logic. Key features include TTL-voltage compatibility and ESD protection exceeding JESD 22 standards.
Detailed information is provided regarding absolute maximum ratings, recommended operating conditions, electrical characteristics over temperature, switching characteristics, noise margins, and package drawings for various configurations including PDIP, SOIC, SSOP, TSSOP, QFN, and CDIP.
Texas Instruments SN74AHCT32 specifications
| Function | Quadruple 2-input positive-OR gates |
|---|---|
| Supply Voltage Range (SN74AHCT32) | 4.5 V to 5.5 V |
| High-Level Input Voltage | Minimum 2 V |
| Low-Level Output Current (SN74AHCT32) | 8 mA |
| Operating Temperature Range (Military SN54AHCT32) | -55°C to 125°C |
Source: Texas Instruments SN54AHCT32/SN74AHCT32 Quadruple 2-Input Positive-OR Gates Datasheet
All Texas Instruments SN74AHCT32 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Are the inputs TTL-voltage compatible?
Yes, the inputs are TTL-voltage compatible.
From: Texas Instruments SN54AHCT32/SN74AHCT32 Quadruple 2-Input Positive-OR Gates Datasheet
How many inputs and outputs does each gate have?
Each gate has two inputs and one output.
From: Texas Instruments SN54AHCT32/SN74AHCT32 Quadruple 2-Input Positive-OR Gates Datasheet
What temperature range can the SN74AHCT32‑Q1 operate in?
It operates from –40 °C to 125 °C (free‑air temperature).
