Key facts
- Brand
- Texas Instruments
- Model
- SN5414
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-02
Start here

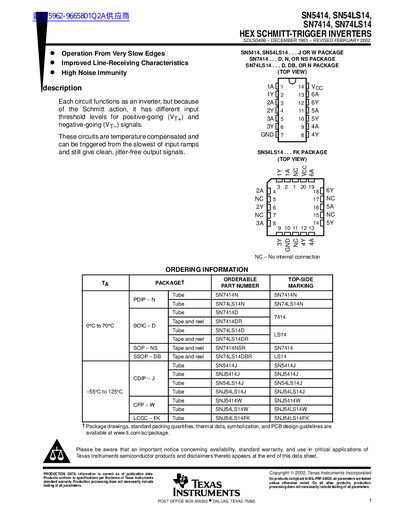

Texas Instruments SN5414/SN54LS14/SN7414/SN74LS14 Hex Schmitt-Trigger Inverters Datasheet
The document describes the SN5414, SN54LS14, SN7414, and SN74LS14 devices as hex Schmitt-trigger inverters. These circuits function as inverters with different input threshold levels for positive-going (VT+) and negative-going (VT-) signals due to Schmitt action. They are temperature compensated and capable of being triggered from very slow input ramps while providing clean, jitter-free output signals.
Read onlineTexas Instruments SN5414 specifications
| Supply Voltage (Voc) | 4.5 V to 5.5 V (SN5414/SN7414); 4.75 V to 5.25 V (LS series) |
|---|---|
| Operating Temperature Range | -55°C to +125°C (SN5414/SN7414); 0°C to +70°C (LS series) |
| High-Level Output Current | -0.8 mA (SN5414/SN7414); -0.4 mA (LS series) |
Source: Texas Instruments SN5414/SN54LS14/SN7414/SN74LS14 Hex Schmitt-Trigger Inverters Datasheet
All Texas Instruments SN5414 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can these devices handle slow input edges?
Yes, they are temperature compensated and can be triggered from the slowest of input ramps while giving clean output signals.
From: Texas Instruments SN5414/SN54LS14/SN7414/SN74LS14 Hex Schmitt-Trigger Inverters Datasheet
What are the operating temperature limits for the standard series?
The recommended operating free-air temperature range is from -55°C to 125°C.
From: Texas Instruments SN5414/SN54LS14/SN7414/SN74LS14 Hex Schmitt-Trigger Inverters Datasheet
What is the function of the SN54LS147?
It encodes nine data lines to four-line (8-4-2-1) BCD.
What is the function of the SN54LS148?
It encodes eight data lines to three-line binary (octal).
