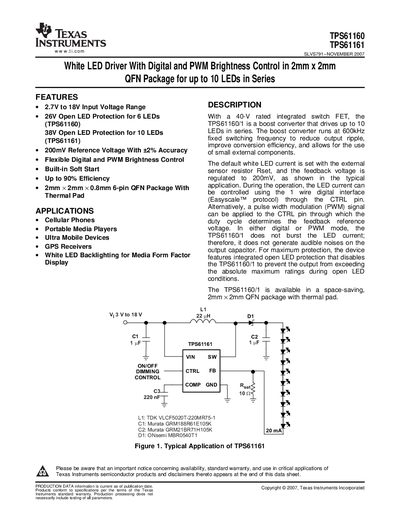

Texas Instruments TPS61160/TPS61161 LED Driver Datasheet
The TPS61160 and TPS61161 are high‑efficiency white LED boost converters offered in a compact 2 mm × 2 mm QFN package. They support an input voltage range of 2.7 V to 18 V and can drive up to ten LEDs in series, providing up to 90 % conversion efficiency. Brightness can be adjusted via a 1‑wire digital EasyScale interface or a PWM signal on the CTRL pin, and the devices include built‑in soft‑start and open‑LED protection.
The datasheet provides full electrical characteristics, absolute maximum ratings, recommended operating conditions, and layout guidelines. Key parameters such as switching frequency (600 kHz), open‑LED protection thresholds (26 V for TPS61160, 38 V for TPS61161), and thermal shutdown specifications are listed, along with typical application circuits and land‑pattern drawings for PCB design.
Texas Instruments TPS61160 specifications
| Input voltage range | 2.7 V to 18 V |
|---|---|
| Open LED protection (TPS61160) | 26 V typical |
| Open LED protection (TPS61161) | 38 V typical |
| Efficiency | up to 90 % |
| Switching frequency | 600 kHz (fixed) |
| Package | 2 mm × 2 mm × 0.8 mm 6‑pin QFN |
Source: Texas Instruments TPS61160/TPS61161 LED Driver Datasheet
All Texas Instruments TPS61160 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the TPS61160/TPS61161?
The devices operate with an input voltage between 2.7 V and 18 V.
From: Texas Instruments TPS61160/TPS61161 LED Driver Datasheet
How many LEDs can be driven in series?
Both parts can drive up to ten white LEDs in series.
From: Texas Instruments TPS61160/TPS61161 LED Driver Datasheet
What is the input voltage range for the TPS61160A/61A?
The device operates with an input voltage from 2.7 V up to 18 V.
From: Texas Instruments TPS61160A/TPS61161A White LED Driver Datasheet
How many white LEDs can be driven in series?
The TPS61160A can drive up to 6 LEDs, while the TPS61161A can drive up to 10 LEDs in series.
From: Texas Instruments TPS61160A/TPS61161A White LED Driver Datasheet
