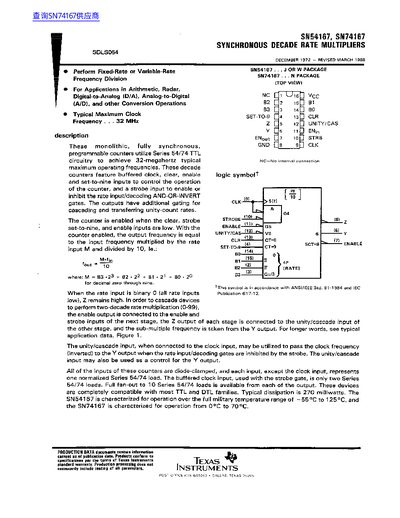

Texas Instruments SN54167/SN74167 Synchronous Decade Rate Multipliers Datasheet
This document is a datasheet for the SN54167 and SN74167 synchronous decade rate multipliers. These monolithic, fully synchronous, programmable counters utilize Series 54/74 TTL circuitry to achieve a typical maximum operating frequency of 32 MHz. They feature buffered clock, clear, enable logic, and set-to-nine inputs to control the operation of the counter, along with a strobe input to enable or inhibit the rate input/decoding gates.
Read onlineTexas Instruments SN5416 specifications
| Number of bits | 8-bit |
|---|---|
| Maximum clock frequency (SN54165/SN74165) | 26 MHz |
| Maximum clock frequency (SN54LS165A/SN74LS165A) | 35 MHz |
| Operating temperature range (SN54165/SN74165) | -55°C to 125°C |
| Operating temperature range (SN54LS165A/SN74LS165A) | -55°C to 125°C |
Source: TEXAS INSTRUMENTS SN54165 SN54LS165A SN74165 SN74LS165A handbook
All Texas Instruments SN5416 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Texas Instruments SN54167/SN74167 Synchronous Decade Rate Multipliers Datasheet 8 p
- TEXAS INSTRUMENTS SN54166 SN54LS166A SN74166 SN74LS166A handbook 16 p
- TEXAS INSTRUMENTS SN54165 SN54LS165A SN74165 SN74LS165A handbook 13 p
- TEXAS INSTRUMENTS SN5406 SN5416 SN7406 SN7416 HEX INVERTER BUFFERS/DRIVERS WITH OPEN-COLLECTOR HIGH-VOLTAGE OUTPUTS handbook 7 p
