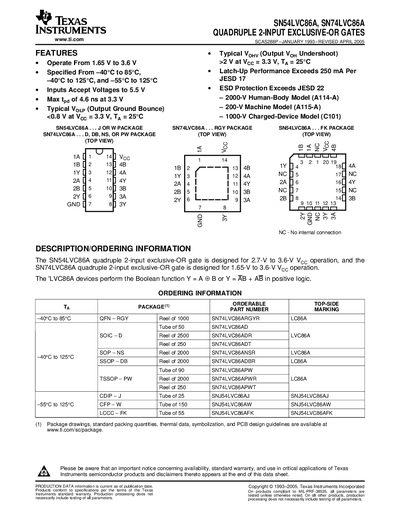

Texas Instruments SN54LVC86A / SN74LVC86A Quadruple 2‑Input Exclusive‑OR Gate Datasheet
The SN54LVC86A and SN74LVC86A are Texas Instruments' quadruple 2‑input exclusive‑OR gate families. They operate from low‑voltage supplies (1.65 V to 3.6 V) and support input voltages up to 5.5 V. The devices provide fast switching with typical propagation delays of a few nanoseconds and include robust latch‑up and ESD protection.
The datasheet lists ordering information, recommended operating conditions, absolute‑maximum ratings, and detailed package options such as QFN, SOIC, SSOP, TSSOP, and CDIP. Mechanical drawings, thermal data, and an important notice about warranty and usage restrictions are also included.
Texas Instruments SN74LVC86A specifications
| Supply voltage range (operating) | 1.65 V to 3.6 V |
|---|---|
| Input voltage rating | Up to 5.5 V |
| Typical propagation delay (3.3 V) | 4.6 ns |
| Latch‑up current capability | ≥ 250 mA |
| ESD protection (Human‑Body Model) | 2000 V |
| Operating temperature range | -40 °C to 125 °C |
Source: Texas Instruments SN54LVC86A / SN74LVC86A Quadruple 2‑Input Exclusive‑OR Gate Datasheet
All Texas Instruments SN74LVC86A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the SN74LVC86A at 3.3 V?
The typical propagation delay is 4.6 ns at a supply voltage of 3.3 V.
From: Texas Instruments SN54LVC86A / SN74LVC86A Quadruple 2‑Input Exclusive‑OR Gate Datasheet
What is the recommended operating temperature range for these devices?
The recommended operating temperature range is –40 °C to 125 °C, depending on the specific part grade.
From: Texas Instruments SN54LVC86A / SN74LVC86A Quadruple 2‑Input Exclusive‑OR Gate Datasheet
What Boolean function does the SN74LVC86A perform?
It implements the exclusive‑OR function Y = A ⊕ B (or Y = AB + A'B') in positive logic.
From: Texas Instruments SN74LVC86A-EP Quadruple 2-Input Exclusive-OR Gate Datasheet
What is the recommended operating temperature range?
The device is rated for –40 °C to 125 °C (and –55 °C to 125 °C for certain packages).
From: Texas Instruments SN74LVC86A-EP Quadruple 2-Input Exclusive-OR Gate Datasheet
