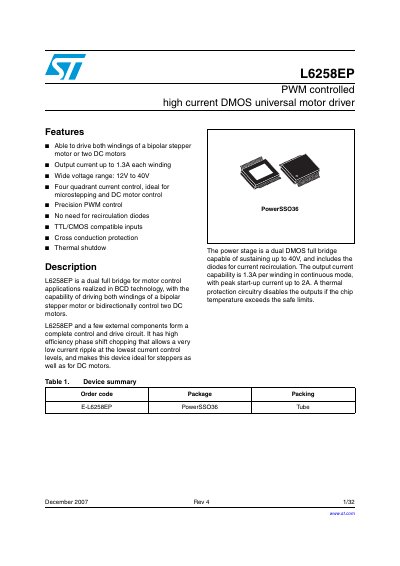

STMicroelectronics L6258EP PWM Motor Driver Datasheet
The L6258EP is a dual full-bridge motor driver designed for bipolar stepper motors or bidirectional control of two DC motors. It features a wide voltage range of 12V to 40V and can drive output currents up to 1.3A per winding in continuous mode, with peak start-up currents up to 2A. The device utilizes high-efficiency phase shift chopping to minimize current ripple and includes built-in diodes for current recirculation, eliminating the need for external recirculation diodes.
Read onlineSTMicroelectronics L6258 specifications
| Output current (continuous) | 1.3 A |
|---|---|
| Output current (peak) | 2 A |
| Supply voltage range | 12 to 40 V |
| Logic supply voltage | 4.75 to 5.25 V |
| Junction temperature | 150 °C |
| Switching frequency | 125 to 18.5 KHz |
Source: STMicroelectronics L6258EP PWM Motor Driver Datasheet
All STMicroelectronics L6258 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is external recirculation diode required?
No, the device includes diodes for current recirculation internally.
What is the thermal shutdown limit?
The thermal protection circuitry disables outputs if the chip temperature exceeds 150 °C.
What motors can the L6258EA drive?
It can drive both windings of a bipolar stepper motor or bidirectionally control two DC motors.
Does the L6258EA require external recirculation diodes?
No, the device includes diodes for current recirculation internally.
What motors can the L6258EX drive?
It can drive both windings of a bipolar stepper motor or bidirectionally control two DC motors.
Does the L6258EX require external recirculation diodes?
No, the power stage includes the diodes for current recirculation.
