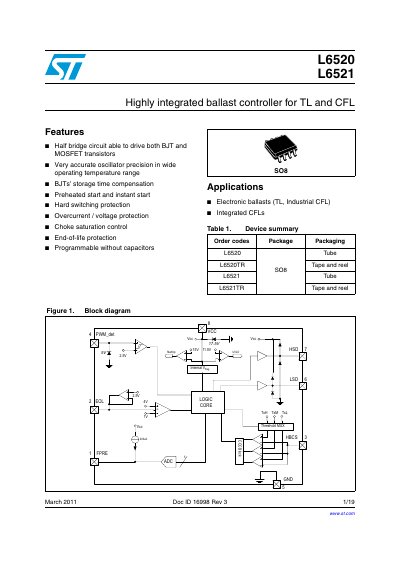

STMicroelectronics L6520/L6521 Ballast Controller Datasheet
The L6520 and L6521 are highly integrated ballast controllers capable of driving both Bipolar Junction Transistors (BJTs) and MOSFETs. They are designed for use in electronic ballasts for fluorescent tubes (TL) and compact fluorescent lamps (CFL), offering features such as preheated and instant start modes, hard switching protection, and choke saturation control. The devices are fully programmable using only resistors and include sophisticated current control circuits for overcurrent and voltage protection.
Read onlineAll STMicroelectronics L6520 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What transistors can the L6520/L6521 drive?
The IC is able to drive both BJTs and MOSFET transistors.
From: STMicroelectronics L6520/L6521 Ballast Controller Datasheet
How is the device programmed?
The IC is fully programmable using only resistors.
From: STMicroelectronics L6520/L6521 Ballast Controller Datasheet
What lamps is the EVAL6520-1421 evaluation board capable of driving?
The board can drive either a T5-14W-HE or T5-21W-HE linear fluorescent lamp.
From: STMicroelectronics EVAL6520-1421 Evaluation Board Data Brief
What is the standard physical size of the EVAL6520-1421 board?
The board uses a standard form factor measuring 19 mm by 120 mm.
From: STMicroelectronics EVAL6520-1421 Evaluation Board Data Brief
