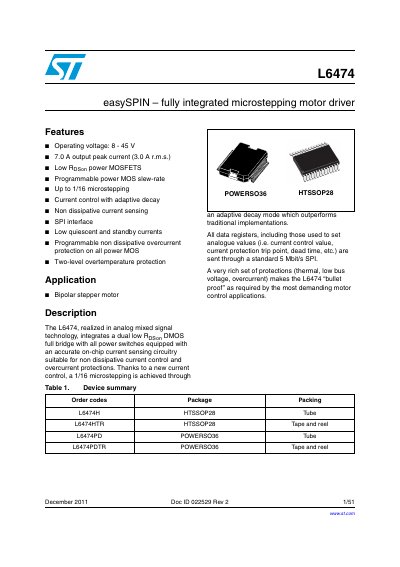

STMicroelectronics L6474 easySPIN Microstepping Motor Driver Datasheet
The L6474 is a fully integrated microstepping motor driver realized in analog mixed signal technology. It integrates a dual low RDSon DMOS full bridge with all power switches equipped with an accurate on-chip current sensing circuitry suitable for non dissipative current control and overcurrent protections. The device supports up to 1/16 microstepping through an adaptive decay mode which outperforms traditional implementations.
Read onlineSTMicroelectronics L6474 specifications
| Operating voltage | 8 - 45 V |
|---|---|
| Output peak current | 7.0 A |
| Output RMS current | 3.0 A |
| Microstepping resolution | Up to 1/16 |
| Interface | SPI |
| Logic supply voltage | 3.3 V or 5 V |
| Motor supply voltage | 8 to 45 V |
| Operating junction temperature | -25 to 125 °C |
Source: STMicroelectronics L6474 easySPIN Microstepping Motor Driver Datasheet
All STMicroelectronics L6474 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output peak current?
The maximum output peak current is 7.0 A.
From: STMicroelectronics L6474 easySPIN Microstepping Motor Driver Datasheet
What is the maximum microstepping resolution?
The device supports up to 1/16 microstepping.
From: STMicroelectronics L6474 easySPIN Microstepping Motor Driver Datasheet
What voltage range can the EVAL6474H board support?
The board supports a supply voltage ranging from 8 V to 45 V.
From: STMicroelectronics EVAL6474H Stepper Motor Driver Evaluation Board Data Sheet
What is the maximum output current for each phase of the driver?
Each phase can deliver up to 3 Ams of current.
From: STMicroelectronics EVAL6474H Stepper Motor Driver Evaluation Board Data Sheet
