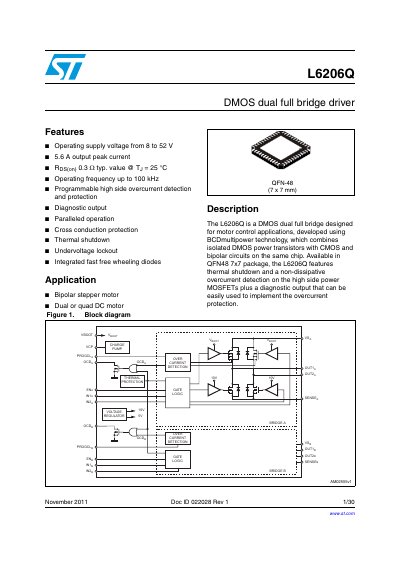

STMicroelectronics L6206Q DMOS Dual Full Bridge Driver Datasheet
The L6206Q is a DMOS dual full bridge driver designed for motor control applications, utilizing BCDmultipower technology to combine isolated DMOS power transistors with CMOS and bipolar circuits. It is available in a QFN-48 (7x7 mm) package and supports operating supply voltages from 8 to 52 V.
Read onlineSTMicroelectronics L6206Q specifications
| Operating supply voltage | 8 to 52 V |
|---|---|
| Output peak current | 5.6 A |
| ON resistance (typical) | 0.3 Q |
| Operating frequency | up to 100 kHz |
| Package type | QFN-48 (7x7 mm) |
| Storage temperature | -40 to 150 °C |
Source: STMicroelectronics L6206Q DMOS Dual Full Bridge Driver Datasheet
All STMicroelectronics L6206Q documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency?
The device supports an operating frequency up to 100 kHz.
From: STMicroelectronics L6206Q DMOS Dual Full Bridge Driver Datasheet
What is the typical ON resistance?
The typical ON resistance is 0.3 Q at 25 °C.
From: STMicroelectronics L6206Q DMOS Dual Full Bridge Driver Datasheet
What motors can the EVAL6206Q drive?
The integrated dual full bridges can be used to drive a single 2-phase stepper motor or up to four DC motors that operate unidirectionally.
From: STMicroelectronics EVAL6206Q Dual Full Bridge Datasheet
What is the maximum output current per phase?
The maximum output current for each phase is 2.5 Ar.m.s.
From: STMicroelectronics EVAL6206Q Dual Full Bridge Datasheet
