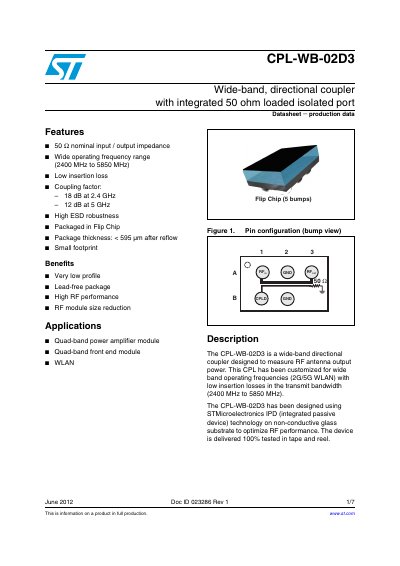

STMicroelectronics CPL-WB-02D3 Wide-band Directional Coupler Datasheet
The CPL-WB-02D3 is a wide-band directional coupler designed to measure RF antenna output power. It operates in the frequency range of 2400 MHz to 5850 MHz and features low insertion loss, with typical values of 0.2 dB at 2.4 GHz and 0.5 dB at 5 GHz.
Read onlineSTMicroelectronics CPL-WB-02D3 specifications
| Operating frequency range | 2400 MHz to 5850 MHz |
|---|---|
| Nominal input impedance | 50 Ohm |
| Coupling factor at 2.4 GHz | 18 dB |
| Coupling factor at 5 GHz | 12 dB |
| Operating temperature range | -30 to +85 °C |
Source: STMicroelectronics CPL-WB-02D3 Wide-band Directional Coupler Datasheet
All STMicroelectronics CPL-WB-02D3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application of this coupler?
It is designed for quad-band power amplifier modules, quad-band front end modules, and WLAN applications.
From: STMicroelectronics CPL-WB-02D3 Wide-band Directional Coupler Datasheet
What package type does the CPL-WB-02D3 use?
The device is packaged in a Flip Chip configuration with 5 bumps.
From: STMicroelectronics CPL-WB-02D3 Wide-band Directional Coupler Datasheet
What are the applications for the DCPL-WB-02D3?
It is designed for multi-band equipment such as power amplifier modules, front end modules, and WLAN.
From: STMicroelectronics DCPL-WB-02D3 Wide-band Dual-path Directional Coupler Datasheet
What is the frequency range for the LB path?
The LB path operates from 2400 MHz to 2500 MHz.
From: STMicroelectronics DCPL-WB-02D3 Wide-band Dual-path Directional Coupler Datasheet
