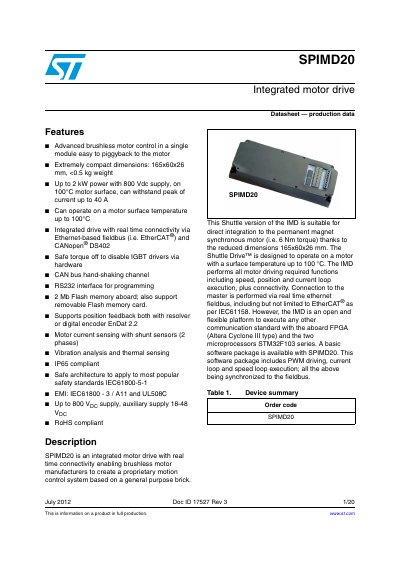

STMicroelectronics SPIMD20 Integrated Motor Drive Datasheet
The SPIMD20 is an integrated motor drive designed by STMicroelectronics in cooperation with ROBOX S.p.A. It features advanced brushless motor control in a compact 165x60x26 mm module weighing less than 0.5 kg. The device is suitable for direct integration with permanent magnet synchronous motors, requiring only DC power, auxiliary supply, and a fieldbus connection.
Read onlineSTMicroelectronics SPIMD20 specifications
| Dimensions | 165x60x26 mm |
|---|---|
| Weight | <0.5 kg |
| Power | Up to 2 kW |
| Supply Voltage | 800 Vdc |
| Protection Degree | IP65 |
| Flash Memory | 2 Mb |
| Position Feedback | Resolver or EnDat 2.2 |
Source: STMicroelectronics SPIMD20 Integrated Motor Drive Datasheet
All STMicroelectronics SPIMD20 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What fieldbus protocols does the SPIMD20 support?
The device supports real-time Ethernet-based fieldbus including EtherCAT and CANopen DS402.
From: STMicroelectronics SPIMD20 Integrated Motor Drive Datasheet
How is the Safe Torque Off function implemented?
It is implemented via hardware by shorting pins 7 and 8 on connectors JU1 and JU2.
From: STMicroelectronics SPIMD20 Integrated Motor Drive Datasheet
What torque is required for the #4 SCREW M3X20?
The required torque is 1.5Nm.
From: STMicroelectronics STEVAL-SPIMD20 Demonstration Kit Data Brief
What torque is required for the #2 SCREW M3X12?
The required torque is 1.5Nm.
From: STMicroelectronics STEVAL-SPIMD20 Demonstration Kit Data Brief
