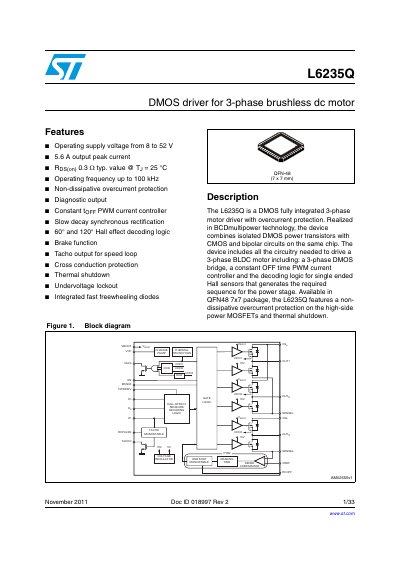

STMicroelectronics L6235Q 3-Phase Brushless DC Motor DMOS Driver Datasheet
The L6235Q is a DMOS fully integrated 3-phase motor driver with overcurrent protection, realized in BCD multipower technology. It combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip to drive 3-phase BLDC motors. The device includes all necessary circuitry, such as a 3-phase DMOS bridge, a constant OFF time PWM current controller, and decoding logic for single-ended Hall sensors.
Available in a QFN48 7x7 package, the L6235Q features non-dissipative overcurrent protection on the high-side power MOSFETs and thermal shutdown. Key specifications include an operating supply voltage from 8 to 52 V, a 5.6 A output peak current, and an RDS(on) of 0.3 Ω typical value at 25 °C.
STMicroelectronics L6235Q specifications
| Operating supply voltage | 8 to 52 V |
|---|---|
| Output peak current | 5.6 A |
| ON resistance (typical) | 0.3 Ω |
| Operating frequency | up to 100 kHz |
| Package type | QFN48 7x7 |
Source: STMicroelectronics L6235Q 3-Phase Brushless DC Motor DMOS Driver Datasheet
All STMicroelectronics L6235Q documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical ON resistance of the L6235Q?
The typical ON resistance is 0.3 Ω at a junction temperature of 25 °C.
From: STMicroelectronics L6235Q 3-Phase Brushless DC Motor DMOS Driver Datasheet
Does the L6235Q include overcurrent protection?
Yes, it features non-dissipative overcurrent protection on the high-side power MOSFETs.
From: STMicroelectronics L6235Q 3-Phase Brushless DC Motor DMOS Driver Datasheet
What software is suitable for use with this board?
The board is suitable for use in combination with PractiSPIN 2 software.
From: STMicroelectronics EVAL6235Q 3-Phase BLDC Motor Driver Data Brief
What is the maximum output current per phase?
The maximum output current is 2.5 Ar.m.s. for each phase.
From: STMicroelectronics EVAL6235Q 3-Phase BLDC Motor Driver Data Brief
