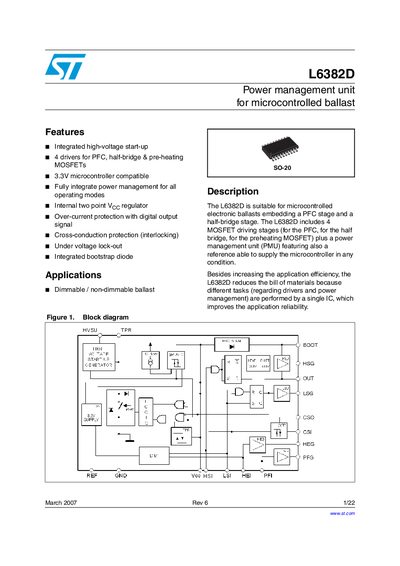

STMicroelectronics L6382D Power Management Unit Datasheet
The L6382D is a power management unit designed for microcontrolled electronic ballasts that embed a PFC stage and a half-bridge stage. It integrates four MOSFET driving stages for the PFC, half-bridge, and pre-heating, along with a power management unit featuring a 3.3V reference voltage to supply a microcontroller.
The device includes advanced power management logic to minimize power losses and increase reliability. Key features include an integrated high-voltage start-up generator, cross-conduction protection, under-voltage lock-out, and over-current protection with a digital output signal. It is suitable for both dimmable and non-dimmable ballast applications.
STMicroelectronics L6382D specifications
| Reference voltage | 3.3 V |
|---|---|
| Operating frequency | 15 to 400 KHz |
| Storage temperature | -40 to +150 C |
Source: STMicroelectronics L6382D Power Management Unit Datasheet
All STMicroelectronics L6382D documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the application of the L6382D?
It is suitable for microcontrolled electronic ballasts embedding a PFC stage and a half-bridge stage.
From: STMicroelectronics L6382D Power Management Unit Datasheet
Does the L6382D include a bootstrap diode?
No, it features a patented integrated bootstrap section that replaces the external bootstrap diode.
From: STMicroelectronics L6382D Power Management Unit Datasheet
What is the L6382D5 suitable for?
The L6382D5 is suitable for microcontrolled electronic ballasts embedding a PFC stage and a half-bridge stage.
From: STMicroelectronics L6382D5 Power Management Unit Datasheet
What is the maximum current available at VREF during operating mode?
The reference voltage can supply up to 30mA to an external circuit during operating mode.
From: STMicroelectronics L6382D5 Power Management Unit Datasheet
What type of lamp is this ballast designed for?
The ballast is designed for a 70 W metal halide lamp, which is a type of HID lamp.
What is the rated output power of the device?
The rated output power of the device is 73 W.
