Start here

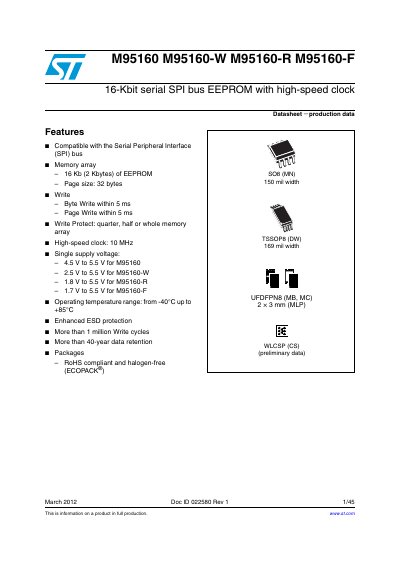

ST M95160 M95160-W M95160-R M95160-F handbook
This document is a datasheet for the M95160, M95160-W, M95160-R, and M95160-F devices, which are 16-Kbit (2 Kbytes) Electrically Erasable Programmable Memories (EEPROMs) accessed via the Serial Peripheral Interface (SPI) bus. The devices are organized as 2048 x 8 bits and support a high-speed clock of up to 10 MHz.
Read onlineSTMicroelectronics M95160 specifications
| Memory Size | 16 Kb (2 Kbytes) |
|---|---|
| Page Size | 32 bytes |
| Max Clock Speed | 10 MHz |
| Operating Temperature | -40°C to +85°C |
| Write Cycle Endurance | 1 million cycles |
| Data Retention | 40 years |
| Supply Voltage (M95160) | 4.5 V to 5.5 V |
| Supply Voltage (M95160-W) | 2.5 V to 5.5 V |
| Supply Voltage (M95160-R) | 1.8 V to 5.5 V |
| Supply Voltage (M95160-F) | 1.7 V to 5.5 V |
All STMicroelectronics M95160 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the memory organization of the M95160?
The memory is organized as 2048 x 8 bits.
What is the maximum clock speed for these EEPROMs?
The devices support a high-speed clock of 10 MHz.
What is the operating temperature range for the M95160-125?
The device is guaranteed over the -40°C to +125°C temperature range.
From: STMicroelectronics M95160-125 Automotive 16-Kbit Serial SPI EEPROM Datasheet
What is the maximum clock speed supported?
The device supports a high-speed clock of 5 MHz.
From: STMicroelectronics M95160-125 Automotive 16-Kbit Serial SPI EEPROM Datasheet
