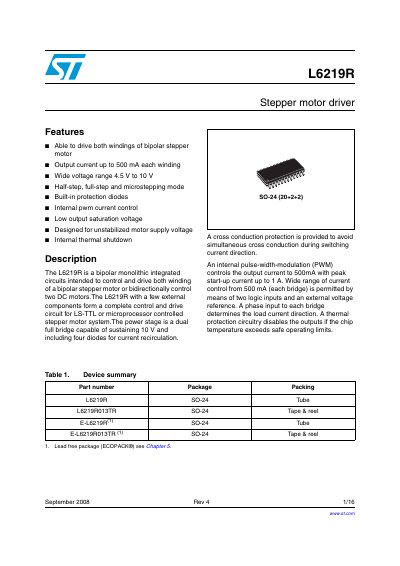

STMicroelectronics L6219R Stepper Motor Driver Datasheet
The L6219R is a bipolar monolithic integrated circuit designed to control and drive both windings of a bipolar stepper motor or bidirectionally control two DC motors. It is intended for use in LS-TTL or microprocessor-controlled stepper motor systems. The device includes a dual full-bridge power stage capable of sustaining 10 V, along with built-in protection diodes for current recirculation.
Key features include internal pulse-width-modulation (PWM) current control, half-step and full-step modes, and microstepping capability. The chip incorporates cross-conduction protection, thermal shutdown circuitry, and is designed for operation with unstabilized motor supply voltages ranging from 4.5 V to 10 V.
STMicroelectronics L6219 specifications
| Output current (peak) | +1 A |
|---|---|
| Output current (continuous) | +0.5 A |
| Motor supply range | 4.5 to 10 V |
| Operating temperature range | -20 to +85 °C |
| Thermal shutdown temperature | 170 °C |
| Thermal resistance junction-case | Max. 18 °C/W |
Source: STMicroelectronics L6219R Stepper Motor Driver Datasheet
