Start here

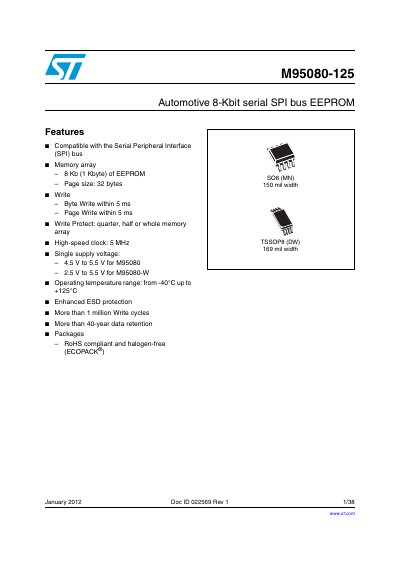

STMicroelectronics M95080-125 Automotive 8-Kbit SPI EEPROM Datasheet
The M95080-125 is an Electrically Erasable Programmable Memory (EEPROM) organized as 1024 x 8 bits, accessed through the Serial Peripheral Interface (SPI) bus. It is designed for automotive applications and complies with the AEC-Q100 Grade 1 standard. The device features a memory array of 8 Kb with a page size of 32 bytes and supports high-speed clocking up to 5 MHz.
Read onlineSTMicroelectronics M95080 specifications
| Memory Size | 8 Kb (1 Kbyte) |
|---|---|
| Page Size | 32 bytes |
| Max Clock Speed | 5 MHz |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage (M95080) | 4.5 V to 5.5 V |
| Supply Voltage (M95080-W) | 2.5 V to 5.5 V |
| Write Cycles | More than 1 million |
| Data Retention | More than 40-year |
Source: STMicroelectronics M95080-125 Automotive 8-Kbit SPI EEPROM Datasheet
All STMicroelectronics M95080 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for the M95080-125?
The device is guaranteed over the -40°C to +125°C temperature range.
From: STMicroelectronics M95080-125 Automotive 8-Kbit SPI EEPROM Datasheet
Is the M95080-125 compliant with automotive standards?
Yes, the devices are compliant with the Automotive standard AEC-Q100 Grade 1.
From: STMicroelectronics M95080-125 Automotive 8-Kbit SPI EEPROM Datasheet
What is the supply voltage range for the M95080?
The M95080 operates with a single supply voltage from 4.5 V to 5.5 V.
From: ST M95080 M95080-W M95080-R 8-Kbit serial SPI bus EEPROM with high-speed clock handbook
What is the supply voltage range for the M95080-W?
The M95080-W operates with a single supply voltage from 2.5 V to 5.5 V.
From: ST M95080 M95080-W M95080-R 8-Kbit serial SPI bus EEPROM with high-speed clock handbook
