Start here

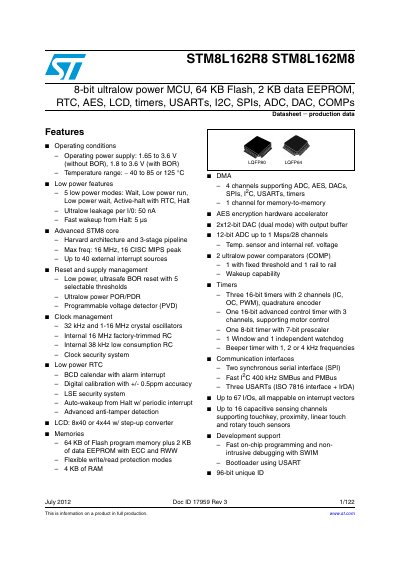

STM8L162R8 STM8L162M8 8-bit MCU Datasheet
This document is a production datasheet for the STM8L162R8 and STM8L162M8, which are 8-bit ultralow power microcontrollers (MCUs). The devices feature an advanced STM8 core with a maximum frequency of 16 MHz, 64 KB of Flash program memory, and 2 KB of data EEPROM with ECC and RWW capabilities.
Key features include five low power modes, an ultralow leakage current of 50 nA per I/O, and fast wakeup from Halt mode in 5 µs. The microcontrollers support various communication interfaces such as two SPIs, Fast I2C, and three USARTs, along with hardware AES encryption acceleration and a 12-bit ADC capable of up to 1 Msps.
STMicroelectronics STM8L162M8 specifications
| Operating power supply | 1.65 to 3.6 V (without BOR), 1.8 to 3.6 V (with BOR) |
|---|---|
| Temperature range | -40 to 85 or 125 °C |
| Flash memory | 64 KB |
| Data EEPROM | 2 KB |
| RAM | 4 KB |
| Max frequency | 16 MHz |
| ADC resolution | 12-bit |
| DAC resolution | 12-bit |
| I/O pins | Up to 67 |
| Unique ID | 96-bit |
All STMicroelectronics STM8L162M8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum operating frequency of the STM8L162R8?
The maximum frequency is 16 MHz.
How much Flash and EEPROM memory does the device contain?
It contains 64 KB of Flash and 2 KB of data EEPROM.
What is the purpose of the firmware described in this note?
The firmware reads and writes encrypted data into an LRxk contactless tag using the MCU's embedded AES hardware.
From: STMicroelectronics AN3992 Application Note Using STM8L162M8 AES with CR95HF
Who can decrypt the data stored in the contactless tag?
Only the owner of the encryption or decryption key can decrypt the data.
From: STMicroelectronics AN3992 Application Note Using STM8L162M8 AES with CR95HF
