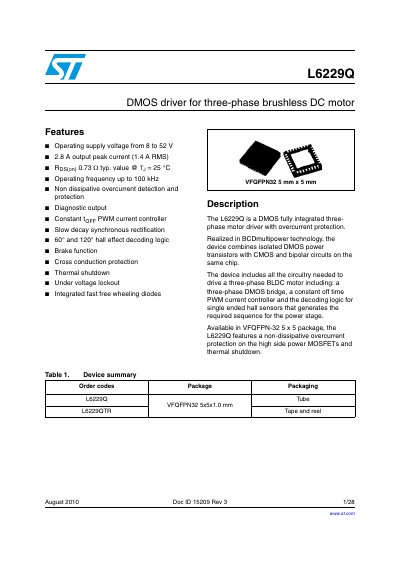

STMicroelectronics L6229Q DMOS Driver Datasheet
The L6229Q is a fully integrated DMOS driver designed for three-phase brushless DC (BLDC) motors. It combines isolated DMOS power transistors with CMOS and bipolar circuits on a single chip, utilizing BCDmultipower technology. The device includes a constant off-time PWM current controller and decoding logic for single-ended hall sensors to generate the required sequence for the power stage.
Key features include non-dissipative overcurrent detection and protection on the high-side power MOSFETs, thermal shutdown, and under-voltage lockout. The device operates with a supply voltage ranging from 8 to 52 V and can deliver a peak output current of 2.8 A. It is available in a VFQFPN-32 5x5 mm package.
STMicroelectronics L6229 specifications
| Operating supply voltage | 8 to 52 V |
|---|---|
| Output peak current | 2.8 A |
| Operating frequency | up to 100 kHz |
| Package type | VFQFPN-32 5x5 mm |
| Thermal shutdown temperature | 165 °C |
| Turn-on threshold | 6.3 V (typ) |
All STMicroelectronics L6229 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What type of motor does the L6229Q drive?
It is a DMOS driver specifically designed for three-phase brushless DC motors.
Does the L6229Q include overcurrent protection?
Yes, it features non-dissipative overcurrent detection and protection on the high-side power MOSFETs.
What is the operating supply voltage range?
The operating supply voltage ranges from 8V to 52V.
What type of motor does the L6229 drive?
It is a DMOS driver specifically for three-phase brushless DC motors.
