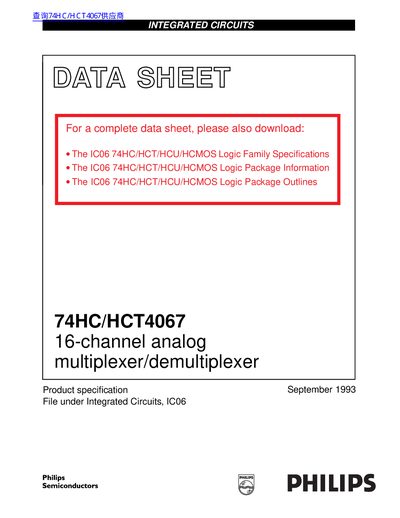

Philips 74HC/HCT4067 16-Channel Analog Multiplexer Datasheet
The Philips 74HC/HCT4067 is a high-speed Si-gate CMOS device functioning as a 16-channel analog multiplexer/demultiplexer. It is pin compatible with the '4067' of the '4000B' series and complies with JEDEC standard no. 7A. The device contains sixteen bidirectional analog switches, each connecting an independent input/output to a common input/output when selected.
Read onlinePhilips HCT4067 specifications
| Number of channels | 16 |
|---|---|
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -65 °C to +150 °C |
Source: Philips 74HC/HCT4067 16-Channel Analog Multiplexer Datasheet
All Philips HCT4067 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many channels does the device have?
The 74HC/HCT4067 contains sixteen bidirectional analog switches.
From: Philips 74HC/HCT4067 16-Channel Analog Multiplexer Datasheet
What is the maximum voltage that can be applied between the analog inputs and ground?
The voltage between the analog inputs and ground must not exceed 10 V.
From: Philips 74HC/HCT4067 16-Channel Analog Multiplexer Datasheet
How many channels does the 74HC/HCT4067 provide?
It provides 16 independent analog channels plus a common I/O pin.
From: Philips 74HC/HCT4067 16-channel Analog Multiplexer/Demultiplexer Datasheet
What supply voltage range is recommended for the 74HC/HCT4067?
The recommended supply voltage ranges from 2.0 V to 15.0 V.
From: Philips 74HC/HCT4067 16-channel Analog Multiplexer/Demultiplexer Datasheet
