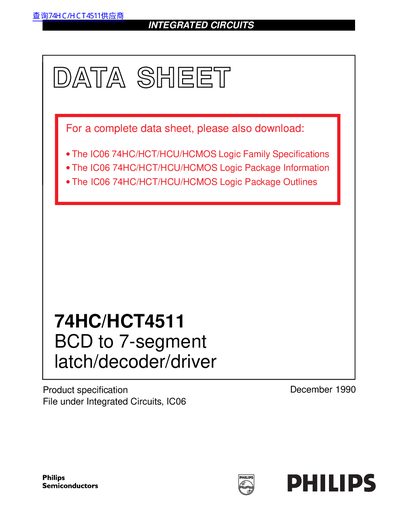

Philips Semiconductors 74HC/HCT4511 BCD to 7-Segment Latch/Decoder/Driver Datasheet
The 74HC/HCT4511 is a high-speed Si-gate CMOS device designed as a BCD to 7-segment latch/decoder/driver. It features four address inputs, an active LOW latch enable input, an active LOW ripple blanking input, and an active LOW lamp test input. The device drives common cathode LED displays with a guaranteed 10 mA drive capability per output.
Read onlinePhilips HCT4511 specifications
| Drive capability per output | 10 mA |
|---|---|
| Logic category | MSI |
| Propagation delay (Dn to Qh) | 24 ns typical |
| Input capacitance | 3.5 pF |
Source: Philips Semiconductors 74HC/HCT4511 BCD to 7-Segment Latch/Decoder/Driver Datasheet
All Philips HCT4511 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the LT input?
When LT is LOW, all segment outputs are HIGH regardless of other inputs.
From: Philips Semiconductors 74HC/HCT4511 BCD to 7-Segment Latch/Decoder/Driver Datasheet
What happens when the BI input is LOW?
A LOW on BI forces all segment outputs LOW to blank the display.
From: Philips Semiconductors 74HC/HCT4511 BCD to 7-Segment Latch/Decoder/Driver Datasheet
What does the LT pin do?
LT is the lamp‑test input; when it is LOW, all segment outputs go HIGH regardless of other inputs.
From: Philips 74HC/HCT4511 BCD to 7-segment Latch/Decoder/Driver Datasheet
What is the guaranteed drive current per segment output?
Each segment output can source up to 10 mA continuously.
From: Philips 74HC/HCT4511 BCD to 7-segment Latch/Decoder/Driver Datasheet
