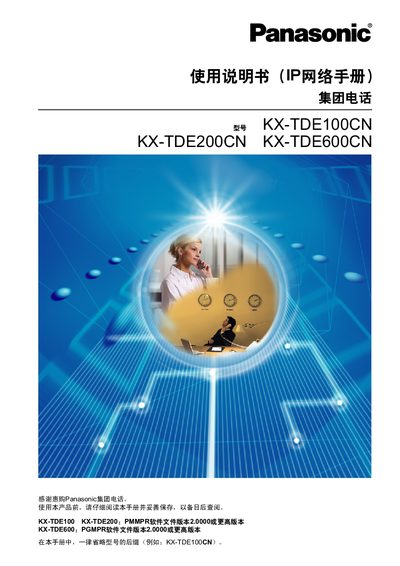

Panasonic KX-TDE100CN/KX-TDE200CN/KX-TDE600CN Group Telephone IP Network Manual
The manual explains how to establish VoIP communication using Panasonic group telephone models KX‑TDE100CN, KX‑TDE200CN and KX‑TDE600CN. It covers network requirements, DHCP and VLAN configuration, and programming of IP‑EXT16 cards.
It also includes a troubleshooting section with error codes and recommended actions, as well as guidelines for connecting the phones to LAN, assigning IP addresses, and managing QoS settings for reliable voice quality. This manual is written in Chinese.
Philips E100 specifications
| SIP Server Port (default) | 5060 UDP |
|---|---|
| STUN Server Port (default) | 3478 UDP |
| Required ports per channel (SIP) | 1 UDP port (35060) |
| Bandwidth per channel – G.711 codec, 10 ms interval | 110.4 kbps |
| Bandwidth per channel – G.729 codec, 10 ms interval | 54.4 kbps |
Source: Panasonic KX-TDE100 / KX-TDE200 / KX-TDE600 Programming Manual
