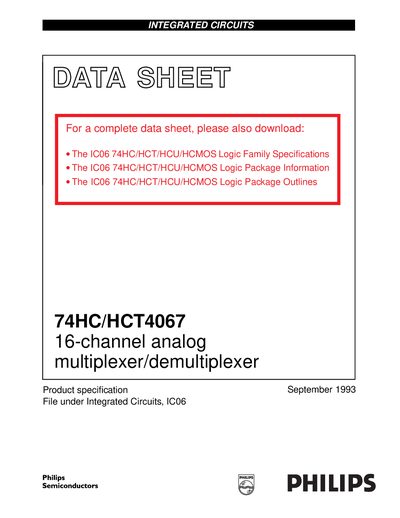

This document is the data sheet of 74HC/HCT4067 16-channel analog multiplexer/demultiplexer
The Philips 74HC/HCT4067 is a 16‑channel analog multiplexer/demultiplexer with four address inputs, an active‑LOW enable, and a common I/O pin. It supports both HC and HCT logic families and is pin‑compatible with the classic 4067 part of the 4000B series.
The document provides electrical characteristics, pin descriptions, recommended operating conditions, and test circuit examples for measuring on‑resistance, off‑state current, and switching times. It also lists ordering information and package outlines.
| Supply voltage (V_CC) | 2.0 V to 15.0 V |
|---|---|
| Maximum switch current | 25 mA per switch |
| Operating temperature range | -40 °C to +125 °C |
It provides 16 independent analog channels plus a common I/O pin.
The recommended supply voltage ranges from 2.0 V to 15.0 V.
The enable input (E) is active LOW.
