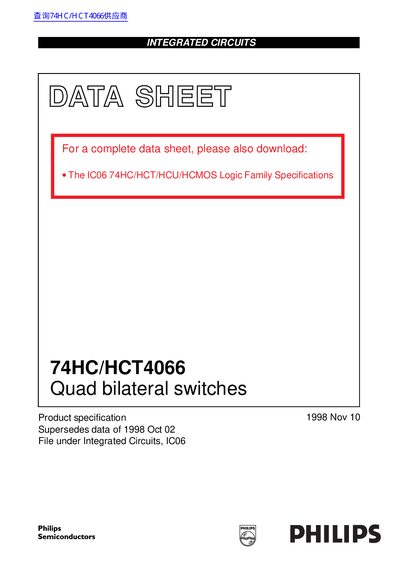

Philips 74HC/HCT4066 Quad Bilateral Switches Datasheet
The Philips 74HC/HCT4066 are high-speed Si-gate CMOS devices containing four independent analog switches. Each switch has two input/output terminals and an active HIGH enable input, allowing signal transmission in either direction when enabled.
These devices exhibit very low ON-resistance (typically 50 Ω at Vcc = 4.5 V) which remains relatively constant over the full input signal range. They are pin compatible with the '4066' of the '4000B' series and comply with JEDEC standard no. 7A.
Philips HCT4066 specifications
| Number of independent analog switches | Four |
|---|---|
| Typical ON-resistance at Vcc = 4.5 V | 50 Ω |
| Typical ON-resistance at Vcc = 6.0 V | 45 Ω |
| Typical ON-resistance at Vcc = 9.0 V | 35 Ω |
| Supply voltage range (74HCT) | 4.5 to 5.5 V |
Source: Philips 74HC/HCT4066 Quad Bilateral Switches Datasheet
All Philips HCT4066 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Are the 74HC/HCT4066 pin compatible with other series?
Yes, they are pin compatible with the '4066' of the '4000B' series.
From: Philips 74HC/HCT4066 Quad Bilateral Switches Datasheet
What is the typical ON-resistance of the switch at 4.5 V?
The typical ON-resistance is 50 Ω at 4.5 V.
From: Philips 74HC/HCT4066 Quad Bilateral Switches Datasheet
What supply voltages are recommended for the HC and HCT versions?
For the HC version the typical supply is 2.0 V to 5.0 V (up to 10 V max); for the HCT version the typical supply is 4.5 V to 5.5 V.
From: Philips 74HC/HCT4066 Quad Bilateral Switches Datasheet
What is the maximum switch current per channel?
The maximum switch current is 25 mA per switch.
From: Philips 74HC/HCT4066 Quad Bilateral Switches Datasheet
