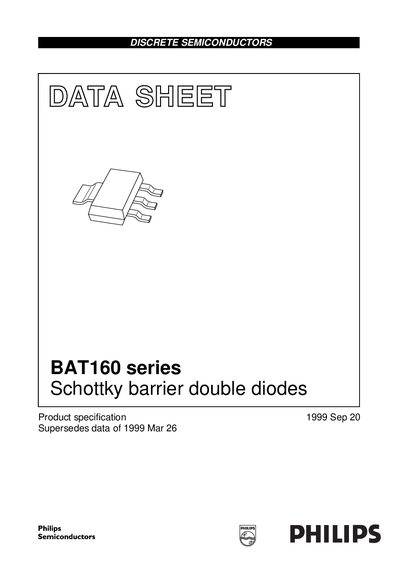

Philips BAT160 Series Schottky Barrier Double Diodes Datasheet
The BAT160 series are planar Schottky barrier double diodes offered in a plastic SOT‑223 surface‑mount package. They feature low switching losses, high surge‑current capability, fast recovery, and a guard‑ring protected design, making them suitable for low‑power switched‑mode power supplies, rectification and polarity protection.
The datasheet provides detailed electrical and thermal limits, typical forward and reverse characteristics, capacitance values, and graphical plots. It also includes pin configurations for the BAT160A, BAT160C and BAT160S variants and outlines the package dimensions and marking codes.
Philips BAT160 series specifications
| Continuous reverse voltage (VR) | -60 V |
|---|---|
| Continuous forward current (IF) | -1 A |
| Storage temperature (Tstg) | -65 °C to +150 °C |
| Junction temperature (Tj) | -150 °C |
| Forward voltage at 1 A (VF) | 650 mV |
| Forward voltage at 2 A (VF) | 850 mV |
Source: Philips BAT160 Series Schottky Barrier Double Diodes Datasheet
All Philips BAT160 series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum reverse voltage rating of the BAT160 diodes?
The diodes are rated for a continuous reverse voltage of –60 V.
From: Philips BAT160 Series Schottky Barrier Double Diodes Datasheet
What forward voltage can be expected at a forward current of 1 A?
At 1 A forward current the typical forward voltage is about 650 mV.
From: Philips BAT160 Series Schottky Barrier Double Diodes Datasheet
What is the maximum continuous reverse voltage for each diode?
The maximum continuous reverse voltage per diode is 60 V.
From: Philips BAT160 Series Schottky Barrier Double Diodes Data Sheet
What is the maximum continuous forward current per diode?
The maximum continuous forward current per diode is 1 A.
From: Philips BAT160 Series Schottky Barrier Double Diodes Data Sheet
What are the main applications for the BAT160 series?
The devices are suitable for low power switched-mode power supplies, rectification, and polarity protection.
From: Philips BAT160 Series Schottky Barrier Double Diodes Datasheet
What is the maximum continuous forward current?
The maximum continuous forward current is 1 A.
From: Philips BAT160 Series Schottky Barrier Double Diodes Datasheet
