Key facts
- Brand
- Fairchild
- Model
- FAN5069
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-12
Start here

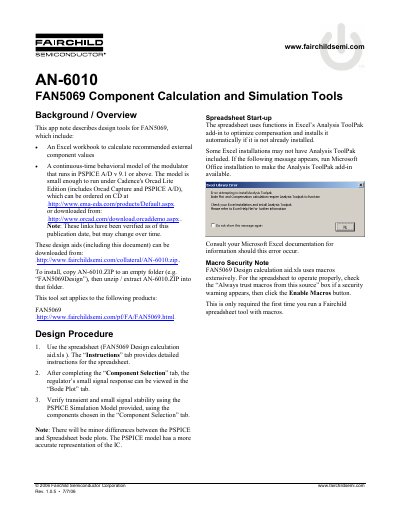

Fairchild Semiconductor FAN5069 Component Calculation and Simulation Tools Application Note
This document describes design aids for the FAN5069, specifically an Excel workbook to calculate external component values and a continuous-time behavioral model for PSPICE simulation. The tools assist in verifying transient and small signal stability.
Read onlineFairchild FAN5069 specifications
| Input Voltage Range | 3V to 24V |
|---|---|
| Output Voltage Range | 0.8V to 15V |
| Switching Frequency Range | 200KHz to 600KHz |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Package Type | 16-Lead TSSOP |
Source: Fairchild Semiconductor FAN5069 PWM and LDO Controller Combo Datasheet
All Fairchild FAN5069 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What software is required to run the PSPICE model?
The model runs in PSPICE A/D version 9.1 or above and can also run under Cadence's Orcad Lite Edition.
From: Fairchild Semiconductor FAN5069 Component Calculation and Simulation Tools Application Note
Where can the design tools be downloaded?
The design aids, including this document, can be downloaded from the Fairchild Semiconductor website.
From: Fairchild Semiconductor FAN5069 Component Calculation and Simulation Tools Application Note
What is the input voltage range for the FAN5069?
The device supports an input voltage range of 3V to 24V.
From: Fairchild Semiconductor FAN5069 PWM and LDO Controller Combo Datasheet
How is the switching frequency adjusted?
The frequency is programmable between 200kHz and 600kHz by placing a resistor from the RT pin to GND.
From: Fairchild Semiconductor FAN5069 PWM and LDO Controller Combo Datasheet
