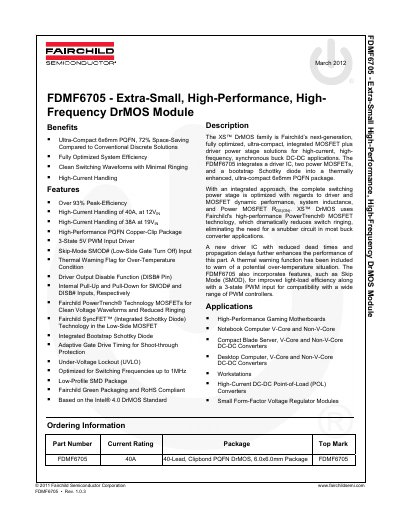

Fairchild FDMF6705 Extra-Small High-Performance DrMOS Module Datasheet
The FDMF6705 is a high-performance, extra-small DrMOS module designed for high-current, high-frequency synchronous buck DC-DC applications. It integrates a driver IC, two power MOSFETs, and a bootstrap Schottky diode into a thermally enhanced 6x6mm PQFN package.
Key features include over 93% peak efficiency, the ability to handle up to 40A at 12V input, and clean switching waveforms with minimal ringing due to Fairchild PowerTrench technology. The module incorporates adaptive gate drive timing for shoot-through protection, a thermal warning flag, and skip-mode operation for improved light-load efficiency.
Fairchild FDMF6705 specifications
| Current Rating | 40A at 12Vin, 38A at 19Vin |
|---|---|
| Peak Efficiency | Over 93% |
| Package Type | 6x6mm PQFN |
| Switching Frequency | Up to 1MHz |
| Operating Temperature Range | -40°C to +125°C |
| Maximum Junction Temperature | +150°C |
Source: Fairchild FDMF6705 Extra-Small High-Performance DrMOS Module Datasheet
All Fairchild FDMF6705 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for the FDMF6705?
It is optimized for high-current, high-frequency synchronous buck DC-DC applications such as gaming motherboards and notebook computer V-Core converters.
From: Fairchild FDMF6705 Extra-Small High-Performance DrMOS Module Datasheet
Does the module include a thermal warning function?
Yes, it includes a Thermal Warning Flag (THWN#) that outputs LOW when the temperature exceeds the trip limit.
From: Fairchild FDMF6705 Extra-Small High-Performance DrMOS Module Datasheet
What is the package size of the FDMF6705B?
The module uses an ultra-compact 6x6mm PQFN package.
From: Fairchild Semiconductor FDMF6705B Extra-Small High-Performance High-Frequency DrMOS Module Datasheet
Does the FDMF6705B include a thermal warning function?
Yes, it incorporates a thermal warning flag that outputs LOW when temperature exceeds the trip limit.
From: Fairchild Semiconductor FDMF6705B Extra-Small High-Performance High-Frequency DrMOS Module Datasheet
What is the maximum switching frequency?
The module is optimized for switching frequencies up to 1MHz.
From: Fairchild Semiconductor FDMF6705V DrMOS Module Datasheet
What is the maximum current rating?
The module has a high-current handling capability of 43A.
From: Fairchild Semiconductor FDMF6705V DrMOS Module Datasheet
